Black Lock From 25g.

A new way to Block

Weight: 25g.

Axle: Al 7075 T6 CNC.

Tool: 6mm Allen on thread side.

Compatibility: See table below.

Special: Bronze self lubing washer.

Graphics: laser etched.

Download user manual

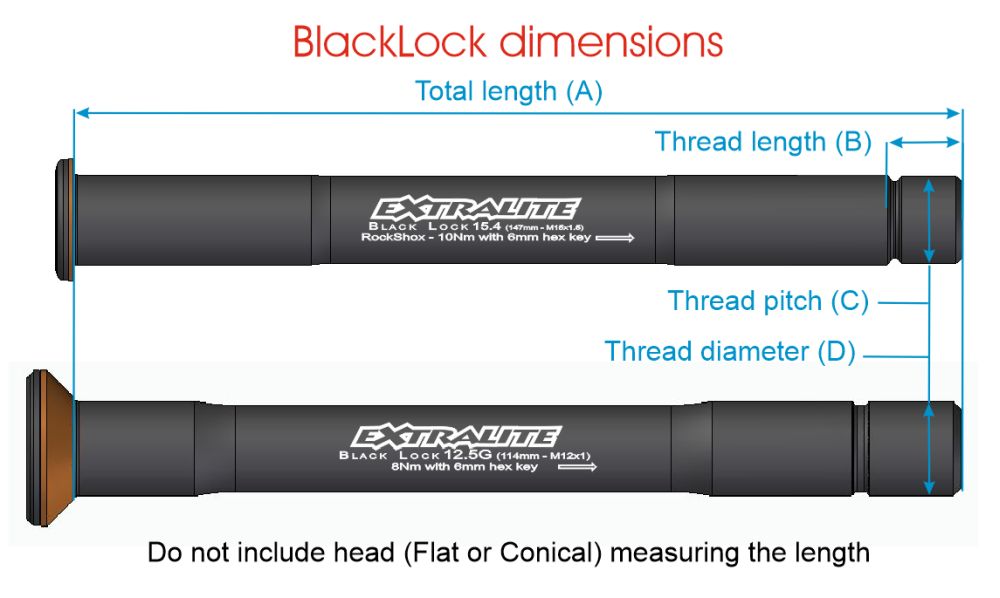

Always double check compatibility measuring your original axle dimensions.

Model
Compatibility
A
Total length
B
Thread length
C & D
Thread pitch
and diameter
Weight
Front Axles

BlackLock 15.1
DT-Swiss XMM29' (Torsion Box models only)
143
8.7
M15x1.5
25g
BlackLock 15.2
DT-Swiss XMM29' (All models)
143
16.2
M15x1.5
26.4g
BlackLock 15.3
Fox
146
14.2
M14x1.5
26.4g
BlackLock 15.3 B
Fox Boost 110
156
14.2
M14x1.5
28g
BlackLock 15.4
Rock Shox Sid/Reba/RS1
147
12.2
M15x1.5
26.7g
BlackLock 15.4 B
Rock Shox Boost 110
156
12.2
M15x1.5
29g
BlackLock 15.5
Magura
139
11
M15x1
27g
BlackLock 12.5
Road bikes 120mm
120
12.5
M12x1.5
20g
Rear Axles

BlackLock 12.1
Shimano E-Thru
172
18.3
M12x1.5
29g
BlackLock 12.1 B
Shimano E-Thru Boost
178
18.3
M12x1.5
31g
BlackLock 12.2
Specialized X-12
161
17.2
M12x1
29.1g
BlackLock 12.2 B
Specialized X-12 Boost
166
17.2
M12x1
31g
BlackLock 12.3
Maxle
176
19.2
M12x1.75
29.9g
BlackLock 12.3 B
Maxle "Boost" 182
182
20
M12x1.75
30g
BlackLock 12.4
Scott, etc (not compatible with Santa Cruz)
168
17.2
M12x1
28.9g
BlackLock 12.4 B
Scott Boost -COMING SOON-
172
17.2
M12x1
29g

Thread Pitch
Here a simple method to check the thread pitch of your axle with a normal vernier caliper.
Measure the total width of 4 thread "roots" as follows:
Align caliper "jaws" with the "first" and with the "fifth" crests (4 roots).
Total width 4mm --> thread pitch 1mm
Total width 5mm --> thread pitch 1.25mm
Total width 6mm --> thread pitch 1.5mm

Extremely light thru-axles for QR15 forks and 12mm thru axle frames.

Their unique design ensures a prefect function with a well balanced dimensioning.

Available for Boost standard.

The notched area of the thread get reinforced by the allen groove and locking/tightening forces do not affect the axle with

useless torsional stress.

Machined with our usual Extra-care, makes you save up to 50g!

The bronze washer adds a smooth action, a tricky nice touch.

Black Lock are supplied separately from our wheelsets.

100% made in Italy
