CyberRear SP 129g.

More miles, less weight.



Weight: 129g (20h).

Drilling: 20, 24, 28h.

Material: special AL7075TX & Grade5 Titanium.

Bearings: ABEC5 cartridges 1x6903-2RS 3x6803-2RS.

Compatibility: Shimano-Sram 8/9/10/11S*, Campagnolo 9/10/11s, Sram XD Drive*.

Axle construction: multishaped 17mm, milled to micro tolerances.

Body construction: 3D multiaxial machining all in 1 stage.

Finishing: black anodized body, "hart-coated" axle-ends.

Micro-tuner: the quickest bearing preload system.

Freewheel: Hyper engineered 2pawls OR-Drive.

Graphics: laser etched.

Optional: HDC-Hybrid-ceramic bearings.

Download user manual

WARNING:
We warmly recommend to precisely check all the operations involved for the assembling and the tuning process before setting your order.
You'll have to take the full responsibility on both hub-assembling and hub-tuning (see details on manual).
Alternatively consider CyberFront SL and CyberRear SL that offer the easiness of externally mounted standard elbow spokes and the widest possible camber of all spoke flanges.

* Minimum/shortest ratio
CyberRear freewheel mechanisms are suitable for road and cyclocross use (and not MTB), minimum 1.00 gear ratio.
Shorter ratios may result in high torque and damage freewheel mechanism.

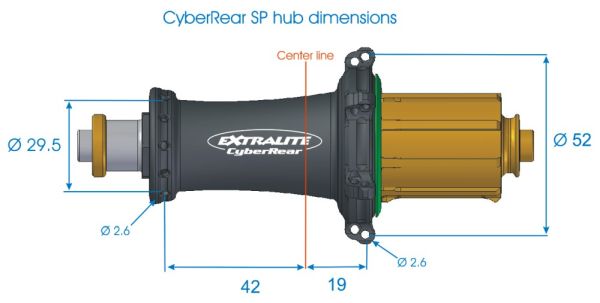

Dimensions for wheel building

Spoke hole : 2.6mm
Left flange drilling : 29.5mm
Centre to left flange: 42mm
Centre to right flange: 19mm
Right flange drilling : 52mm

Here you will find pre-calculated spoke lengths, spoke patterns and wheel building tips:

CyberRear SP lacing instructions



New 4-bearing design for long lasting performance.

New oversized titanium ratchet wheel with a precise 32T pawl engaging system.

Micro-tuner: our easy and quick external bearing preload system that ensures precise tuning, smooth running and no play at the rim.

Equipped with ABEC5 cartridge bearings featuring Grade 5 Chromium Steel Balls, 52100 Hi-Carbon Chromium Alloy Races, Nylon-Graphite Ball Retainers. Fully serviceable.

Very light: a weight nearly as low as hybrid ceramic versions.

Special low friction SRS axial seals on main hub bearings, 2RS protective seals on freewheel bearings.



Hi-tech rarely combines with maintenance easiness, not here!



As with all Extralite products CyberHubs exceed UNI/DIN Safety standards.



100% made in Italy
