HyperBar from 86g. (600mm UL version)

Safety in your hands.

Bend: 6°+6°

Rise: +/-5mm

Width: up to 750mm

Weight: see table below

Stem clamp diameter: 31.8mm

Bar end: compatible on HyperBar BEC.

Maximum rider weight: 90kg / 200lbs.

Material: multishaped prepreg carbon layers.

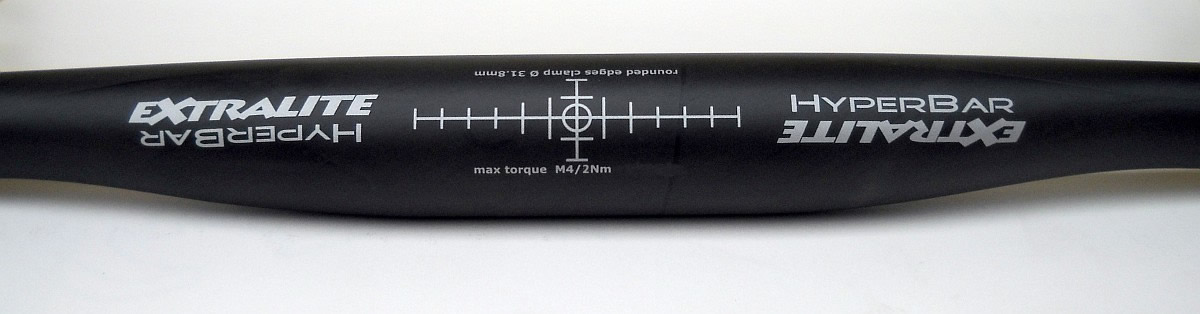

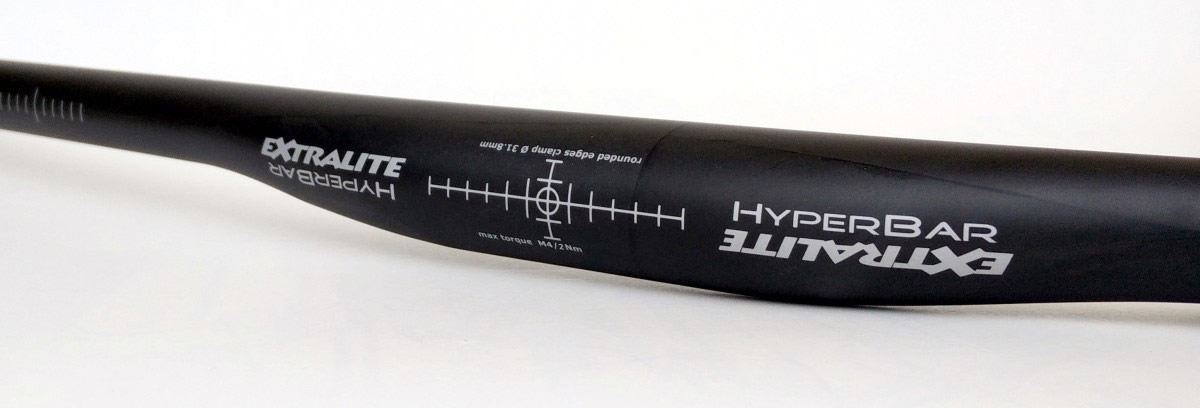

Graphics: made for fast and precise lever and grips positioning.

Finish: Natural carbon with graphics.

Available versions:

Weights per lengths**
750mm
700mm
650mm
600mm
HyperBar UL2 (3K finish)
94g.
90g.
88g.
86g.
HyperBar (UD finish)
102g.
98g.
94g.
90g.
HyperBar BEC* (3K finish)
108g.
104g.
100g.
96g.

* Bar End Compatible

** Shorter lengths are available upon request

Download user manual

This handlebar is the results of a very accurate design of the tapered transition areas.

Benefits from a more efficient transition design is a sensible strength increase at the most critical areas.

No fancy graphics around! Only what you need to setup your cockpit fast and precisely.

Premium high pressure prepreg fiber layering and in ultra smooth 3D mold with accurate fiber orientation and additional unique reinforcements.

Fatigue tested and loaded up 300kgf, exceeds EN safety standard requirements!

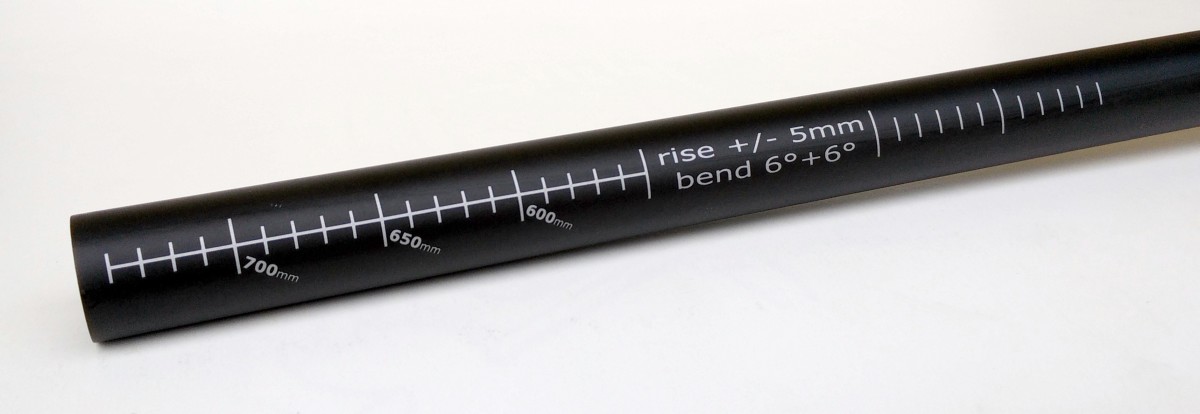

Smart design allow a +/-5mm rise installation.

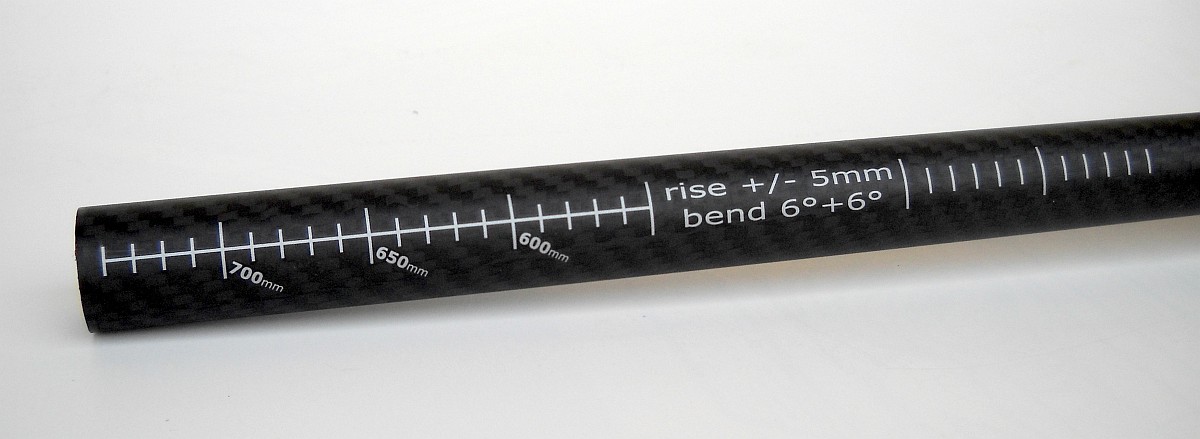

UL2 and BEC version sports 3k carbon look.

The new version has improved carbon layer pattern to have more stiffness and less weight.

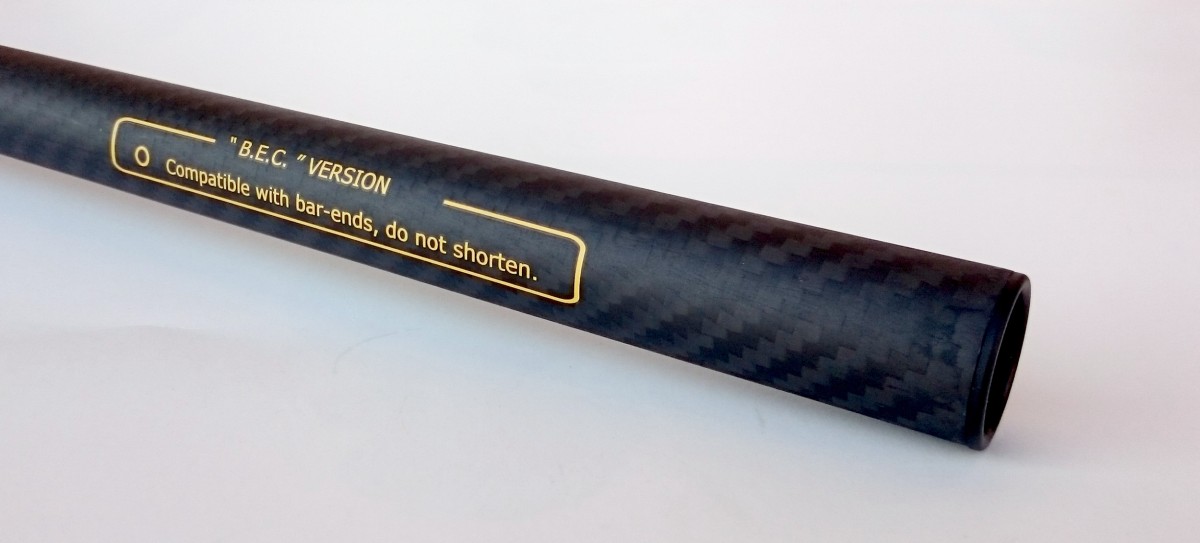

BEC version includes reinforcements to support bar ends clamping forces.

HyperBar exceeds EN standard fatigue and static test requirements.



Warning

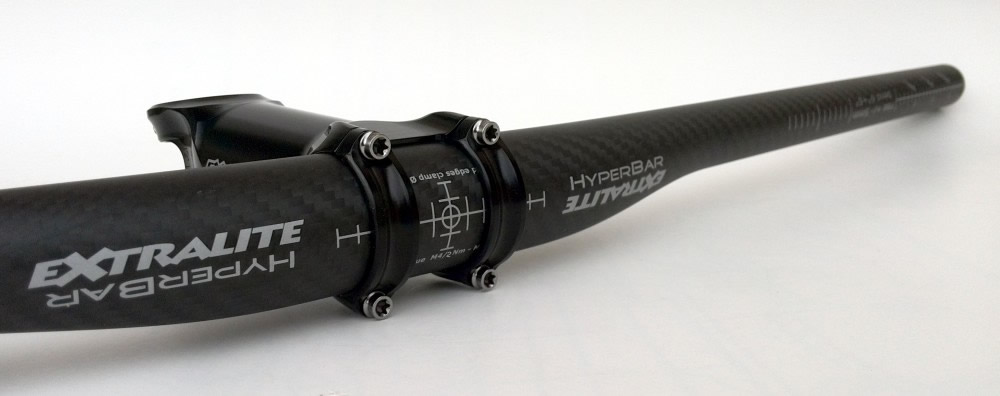

HyperBar should be only used in combination with a stem that features well rounded edges at the bar clamp, just like Extralite HyperStem or UltraStem OC.
