Here you find all the necessary instructions to realize your dream wheels with pre-calculated spoke lengths.
Follow instruction step by step:
1)Measure your "spoke-end diameter"
2)Find your front spoke length on table A & B
3)Find your rear spoke length on table B
Rim
offset:
(normally 2 - 3mm) influences the spoke length for an average 0.3mm.
You may neglect it or eventually use that tiny amount just for rounding lengths
to the available spoke size.
(All measures are expressed in mm)
Warning:
spoke lacing and tensioning require skills and experience,refer to an expert
professional wheel builder for these operations.
1)"spoke-end diameter"
Rim manufacturers always offer ERD figures however we warmly recommend to precisely measure the rim+nipple combination.
Basically
a correct spoke calculation requires exact "spoke-end diameter" and rim drilling.
Spoke-end
diameter depends on your rim internal diameter and nipple type.
How to measure "spoke-end diameter"
2)UltraFront SPD / HyperLefty
Radial lacing - Straight-pull spokes
Spoke-end
Diameter
|
Spoke
Length
|
26'
Rims
|
|
515
|
244
|
520
|
246-247
|
525
|
249
|
530
|
251-252
|
535
|
254
|
540
|
256-257
|
545
|
259
|
550 |
261-262
|
555
|
264
|
560
|
266-267
|
29'
Rims
|
|
580
|
276-277
|
585
|
279
|
590
|
281-282
|
595
|
284
|
600
|
286
|
605
|
289
|
610
|
291
|
Table A
Note: We
list "spoke-end diameters" every 5mm step. If your "spoke-end
diameter" measure is in between 2 steps adjust your spoke length consequently.
Example 1: your "spoke-end diameter" is 553mm use 263mm spoke.
Example 2: your "spoke-end diameter" is 548mm use 260mm spoke.
Example 3: your "spoke-end diameter" is 549mm use 261mm spoke.
Example 4: your "spoke-end diameter" is 550mm use 261 or 262mm spoke.
UltraFront SPD / HyperLefty
Crossed sides - Straight-pull spokes
Spoke-end
Diameter |
Spoke
Length
28H |
Spoke
Length
32H |
26'
Rims
|
||
515
|
261-262
|
256-257
|
520
|
264
|
259
|
525
|
266-267
|
261
|
530
|
269
|
264
|
535
|
271-272
|
266
|
540
|
274
|
269
|
545
|
276-277
|
271
|
550 |
279
|
274
|
555
|
281-282
|
276
|
560
|
284
|
279
|
29'
Rims
|
||
580
|
294
|
288-289
|
585
|
296
|
291
|
590
|
298-299
|
293-294
|
595
|
301
|
296
|
600
|
303-304
|
298-299
|
605
|
306
|
301
|
610
|
308-309
|
303-304
|
Table B
Note: We list "spoke-end diameters" every 5mm step. If your "spoke-end diameter" measure is in between 2 steps adjust your spoke length consequently.
3)UltraRear SPD
Crossed sides - Straight-pull spokes
Spoke-end
Diameter |
Spoke
Length
28H |
Spoke
Length
32H |
26'
Rims
|
||
515
|
261-262
|
256-257
|
520
|
264
|
259
|
525
|
266-267
|
261
|
530
|
269
|
264
|
535
|
271-272
|
266
|
540
|
274
|
269
|
545
|
276-277
|
271
|
550 |
279
|
274
|
555
|
281-282
|
276
|
560
|
284
|
279
|
29'
Rims
|
||
580
|
294
|
288-289
|
585
|
296
|
291
|
590
|
298-299
|
293-294
|
595
|
301
|
296
|
600
|
303-304
|
298-299
|
605
|
306
|
301
|
610
|
308-309
|
303-304
|
Table B
Note:
We list "spoke-end diameters" every 5mm step. If your "spoke-end
diameter" measure is in between 2 steps adjust your spoke length consequently.

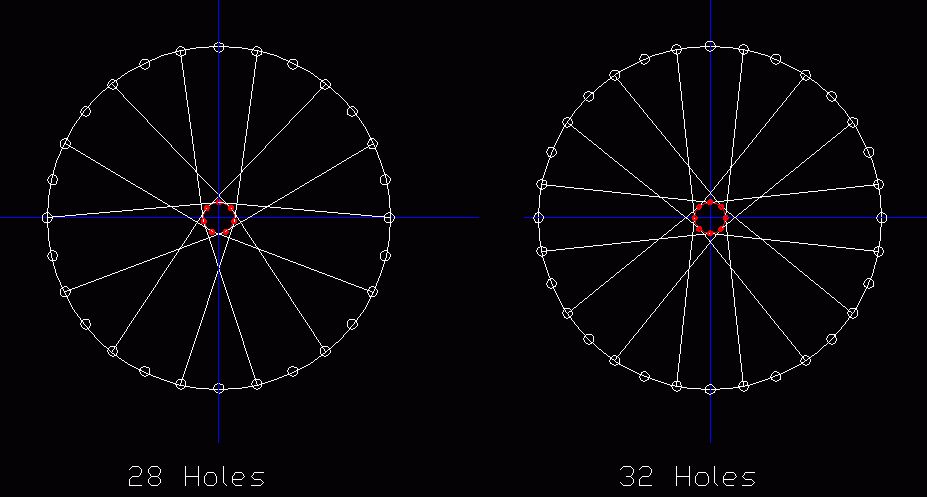

Lacing: correct lacing patterns with straight-pull spokes must be tangential, as shown below (and not as the traditional 2 or 3 crossings used for elbow spokes)
