Rc1 Dimensions (in mm)
| Large | Medium | Small | |||
| A | 600 | 585 | 570 | ||
| B | 475 | 450 | 425 | ||
| C | 110 | 105 | 100 | ||
| D | 422 | 420 | 418 | ||
| E | 71° | 71° | 71° | ||
| F | 73° | 73° | 73° | ||
| G | 450* | 450* | 450* | ||
| H | 290 | 290 | 290 | ||
| I | 2 | 2 | 2 | 2 |
*Recommended fork lenght: 440mm to 460 mm.
You can also use slightly longer or shorter forks; just realize that your Rc1 geometry will change as follows:
shorter fork = less stability at speed
longer fork = slower steering response
Frame weight refers to the complete frameset, Medium size, Anodized finish.
Size weight changes: small -20gr.; large +20gr.
Add 80gr. for powdercoated finish.

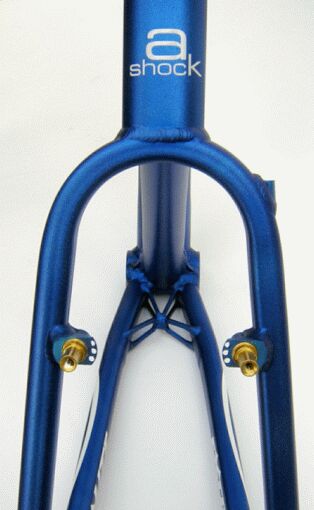

"A-Shock" Microabsorber System
Extralite equips Rc1 framesets with the "A-Shock", our original microabsorber system.
With a degree of vertical compliance and no unwanted lateral flex it provides the ultimate combination of rigid efficiency and racing comfort.
