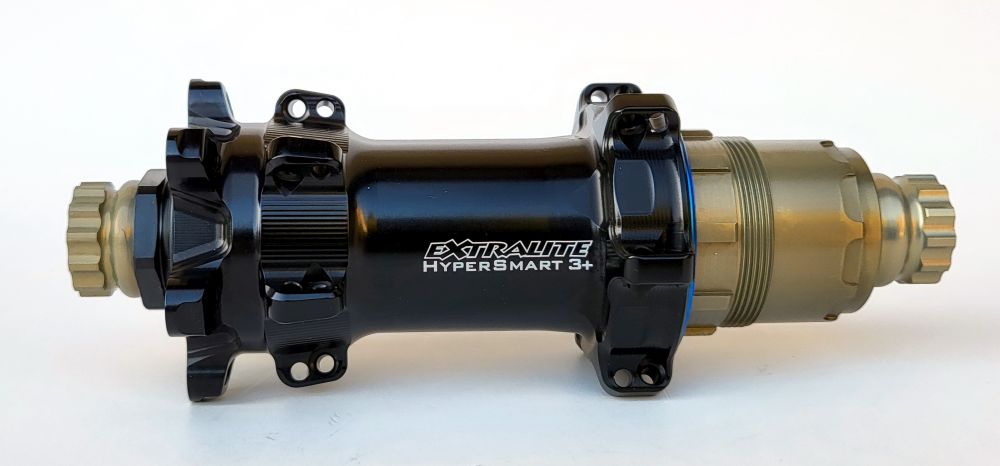

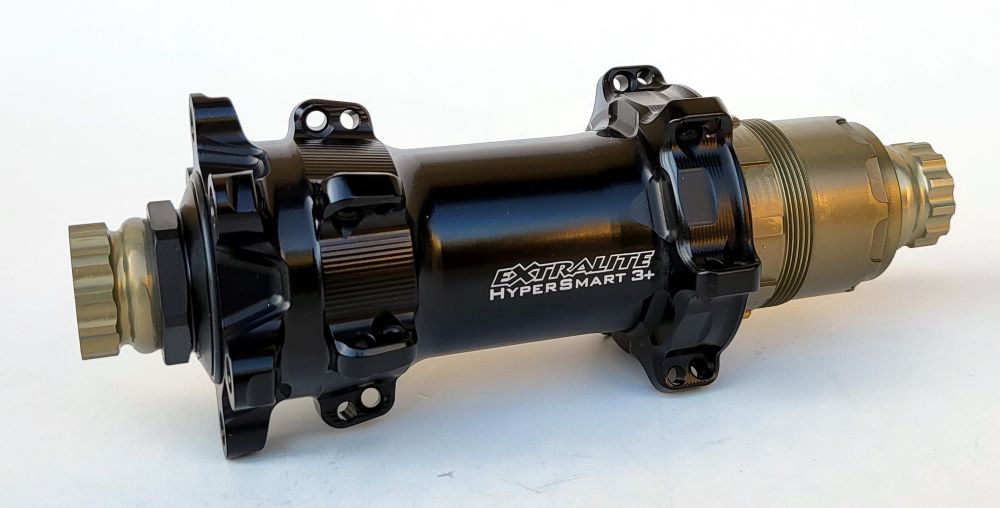

HyperSmart3+ R 144g. (24h-XD-HyC)

Super adaptive, yet incredibly light and precise.



Weight: 144g.(24h-XD-HyC)

Material: special 7075TXX

Available Drillings: 24h, 28h

Spokes: up to Ø2.6mm, Steel, Berd, Carbon

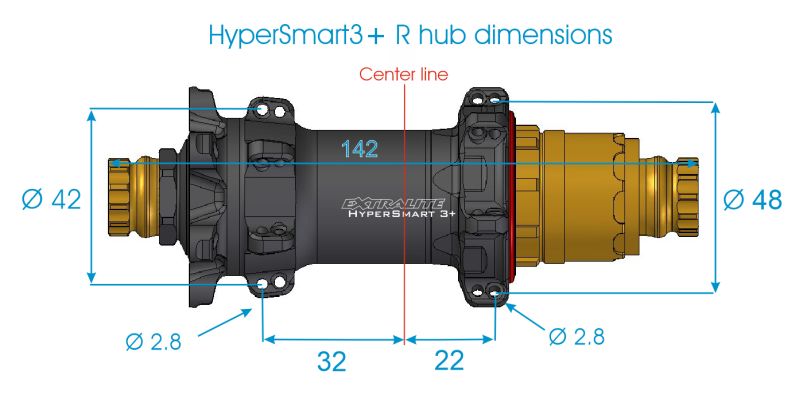

Frame standard: 142mm Thru-Axle or 135mm"QR"

Spoke holes: Rounded and 3D Drilled for perfect spoke alignment

Road-Gravel cassette standards: 48 poe; Sram XDR-Drive, Shima R11/2s

MTB cassette standards: 36 or 48 poe;Sram XD-Drive, Shima M11s or Shima M12s

Freehub system: 3rd generation of Extralite's hyper engineered front engagement 36 or 48 poe

Freehub seals & bearings: durable polyurethane Lip seal, 2x 6803-2RS sealed cartridges

Hubshell seals & bearings: external Soft-Touch O-r seal, 2RS sealed cartridges 6903+6803

Axle construction: 17mm, multi-shaped and individually lapped to micro tolerances

Bearing options: ABI Enduro 440-stainless, HDC Ceramic, XD15 Ceramic

Micro-Tuner: super accurate external bearing preload system

Finishing: black anodized body, "hart-coat" freehub and axle-ends

Graphics: laser etched

Optional: HyC HyperCeramic bearings

Download user manual

Bearing
Options


Lacing Instructions

Pre-calculated spoke lengths, spoke patterns and wheel building tips.

Freewheel Options

High corrosion resistance
Average best choice for humid environment
or frequent bike washing



MTB
Sram XD (11-12s)

Shimano MTB 11s

Shimano MTB 12s (includes special lock-ring)



GRAVEL - ROAD

Sram XDR Drive

Shimano R. 11-12s


Good mileage
Low rolling resistance
Medium resistance in humid environment
Best choice for best racing performance

Low rolling resistance
Highest mileage
Fully openable and rebuildable
Highly resistant to water, moisture and salt
Best choice for maximum racing performance and durability

FAQ
HyperHubs Tips Page

Unique feature: HyperSmart3+ R offers the max spoke camber for MTB lacing and self-adapts when equipped with road-gravel freewheels

Combine HyperSmart3+ R with Black-lock and get a tricky super-stiff assembly

The overall hub system is the world lightest and employs bigger bearings than most competitors
Freehub employs 2 corrosion resistant stainless bearings (6803-2rs), hubshell rotates on a"heavy duty"
(6903-2rs) corrosion resistant stainless main bearing that can handle 250kg and a low friction (6803-2rs) bearing on disc side



Available with MTB and Gravel-road freewheels

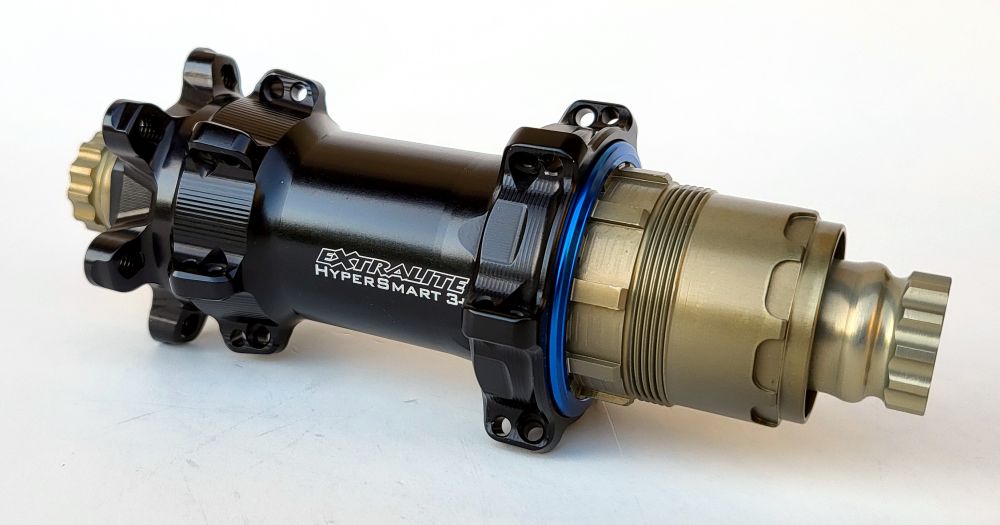

Third generation of Extralite's front engagement system increases the gap with the competition
20% lighter floating-ring enhances engagement quickness and also reduces noise and drag
Newly developed hubshell splines increase overall lifespan over 35% and simplifies maintenance
Specifically designed long-life polyurethane Lip seal protects the freewheel mechanism from the elements

Bigger bearings are mounted onto a bigger 17mm diameter axle, multi-shaped and individually lapped to micro tolerances
This creates a stiffer assembly that significantly increases bearing durability and hub stiffness



Micro-tuner ensures a very precise bearing setting: minimum bearing friction with highest bearing durability and no play at the rim

Additional external Soft-Touch O-ring seals keep dust and moisture away from the 2RS bearing seals promoting bearing longevity

All this offers a sensible weight reduction and is well compatible with Berd spokes without tangential washers

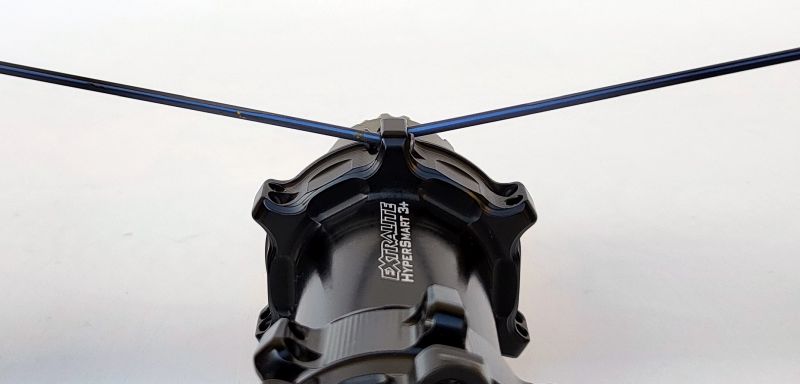

Angled 3D Drilled spokes ensure a perfect head alignment

Straight pull spokes increase wheel stiffness, reduce lateral flex and increase reactivity under torque transmission

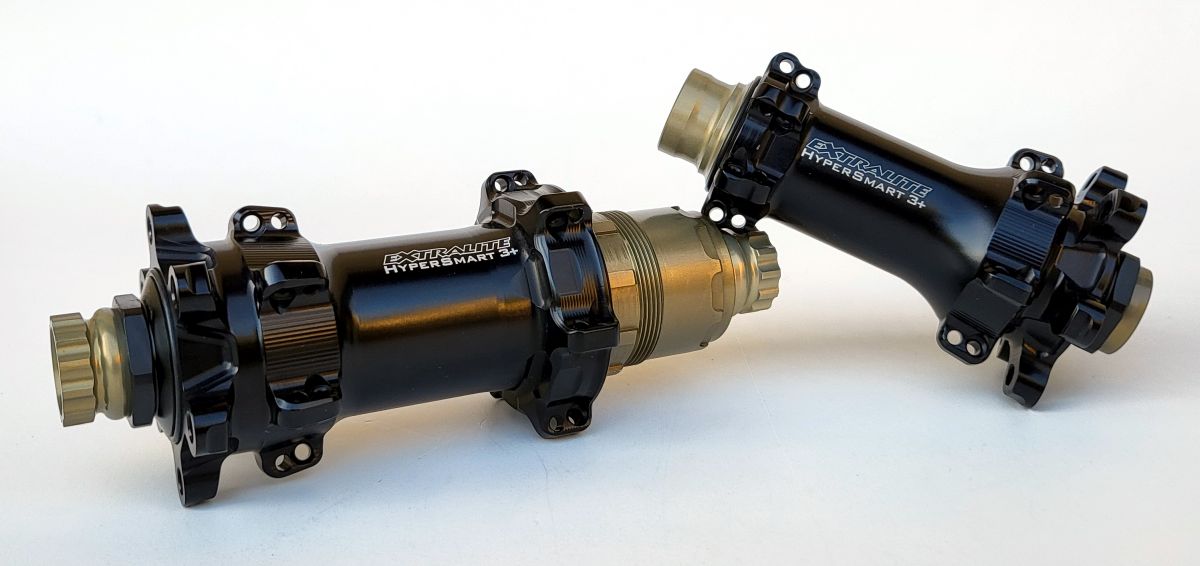

HyperSmart set reach the impressive weight of 213g

100% made in Italy
