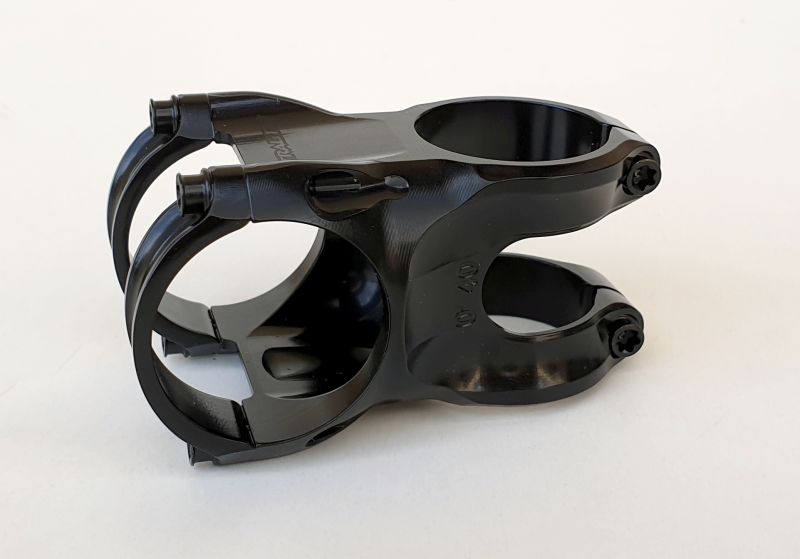

HyperStem 54g. (40mm)
Stiffer, lighter, tougher
SIZE - W E I G H T - C H A R T (grams)
| Length |
40mm
|
60mm
|
70mm
|
80mm
|
90mm
|
100mm
|
110mm
|
120mm
|
130mm
|
| 0° |
54
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
| 6° |
X
|
61
|
65
|
69
|
74
|
79
|
83
|
87
|
91
|
| 12° |
X
|
X
|
X
|
69
|
74
|
79
|
83
|
87
|
X
|
| 18° |
X
|
61
|
65
|
69
|
74
|
79
|
83
|
87
|
X
|
| 1.25 6° |
X
|
X
|
X
|
69
|
74
|
79
|
83
|
87
|
X
|
Bar
clamp
width: 44mm
Bar clamp
diameter: 31.8mm
Steer
tube clamp
diameter: standard 1 1/8" (28.6mm)
Ultra
stiff structure: very efficient with your upper body
energy
Bolts:
special CNC Grade5 Titanium, T15 black PVD coated
Angles:
reversible, 0°, +/- 6°, +/-
12°, +/-
18°
Material:
fully 3D cnc'd from AL 7075 Txx
Graphics:
black laser etching
Fork
clamp
height:
38mm
Minimum
insert:
32mm
Finish:
black anodized
Download
user manual
Design and dimensioning are impressive, mass and stress concentrations have been further reduced
HyperStem can be ordered with the optional CH-02 Computer Holder ready fitted on
Grade5 titanium black PVD coated Torx bolts with special "rounded heads" are the standard equipment
Over one hour of continuos 3dimensional CNC milling and contoured shapes on a huge multiaxial Mazak Intergrex machine
Well rounded edges on all clamps make it fully carbon-friendly
Accurate 3D surface machining smoothes every part of its body
When you see it the flesh you'll realize that it's an absolute performance sculpture

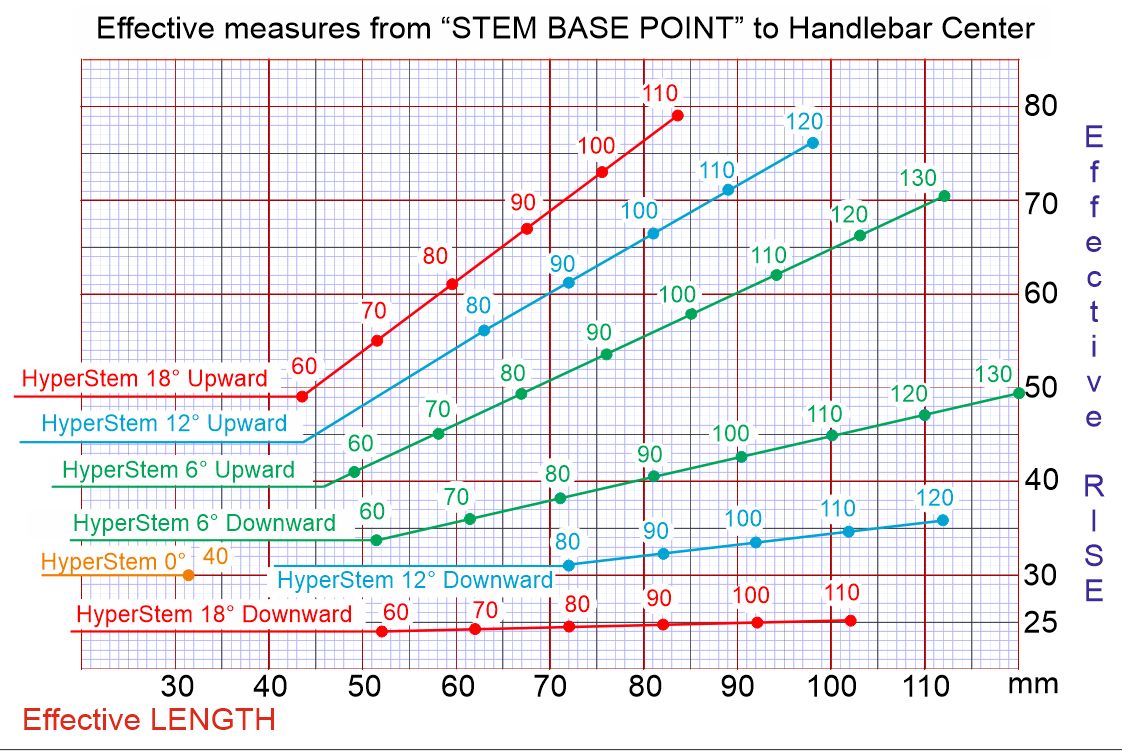

B I O M E T R I C - F I T T I N G - C H A R T

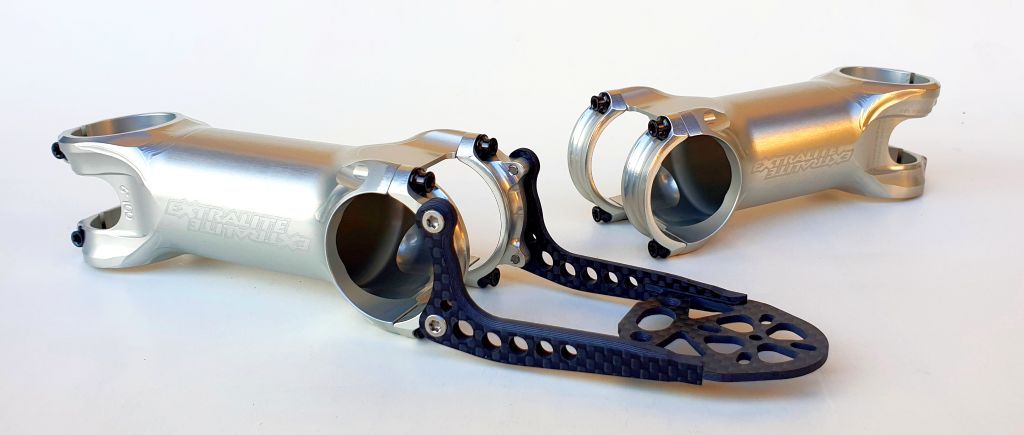

S i l v e r - L i m i t e d - E d i t i o n - 2024
Fatigue tested for months, down to boredom
But
it generously paid us back with exceptional results
Exceeds the EN safety standard requirements so much that we can recommend it for Enduro use.
Fatigue and strength tested, exceeds UNI 10518 safety standards
100% made in Italy
