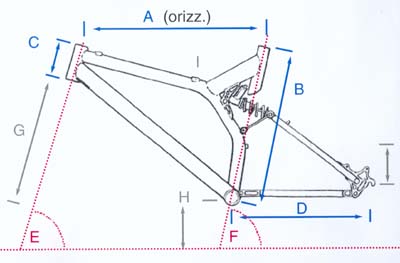

F-1 (vers.3.0) dimensions (in mm)



  Large Medium Small
A 595 580 565
B 490 490 490
C 105 105 105
D 420 420 420
E 71° 71° 71°
F 73° 73° 73°
G 460* 460* 460*
H 320 320 320
I 75 75 75





*Recommended fork lenght: 450mm to 470 mm.

You can also use slightly longer or shorter forks; just realize that your F-1 geometry will change as follows:

shorter fork = less stability at speed

longer fork = slower steering response



F-1 weight is 1980gr.(4.4Lb).

It relates to the complete frameset and shock, Medium size, Anodized finish.

+/- 15gr./0.5oz. for Large and Small sizes, add 60gr. for painted finish.



"X-link" Rear Suspension

The "X-link" system offers a very linear anti-bob response, suitable for riders that want a full suspended racer that feels like a rigid one while sprinting off the saddle, but with more climbing, braking, cornering and descending control.

With a hardtail's agility, quickness and weight the F-1 gives you the best weight/performance ratio ever dreamed for x-c racing.



Spring options

Soft, medium, hard springs are suitable for bikers weighting 50-65 kg./115-145Lb.,62-78kg./135-175Lb.,75-90Kg./165-200Lb. respectively.

F-1 soft (silver finish) 5.2 kg/mm

F-1 med/soft (grey finish) 5.7Kg/mm

F-1 medium/hard (blue finish) 6.2 Kg/mm

The 3 springs versions are suitable for bikers weighting 50-65 kg/115-145Lb,62-78kg/135-175Lb,75-90Kg/165-200Lb respectively.

The spring choice should reflect the rider's weight, riding style and personal preference.



Components Specifications (mm, inches)

Headset: 28.6m, 1-1/8'

Bottom braket: BSA 68mm

Front deralier: 34.9mm top swing top pull

Seatpost: 31.6mm (90mm minimum insert)

Rear hub: 135mm

Rims: MTB 26'

Tyres: 2.3' max.

Seatstay versions available for:

Disc only

(international standard)

or

V-brake only



100% made in Italy
