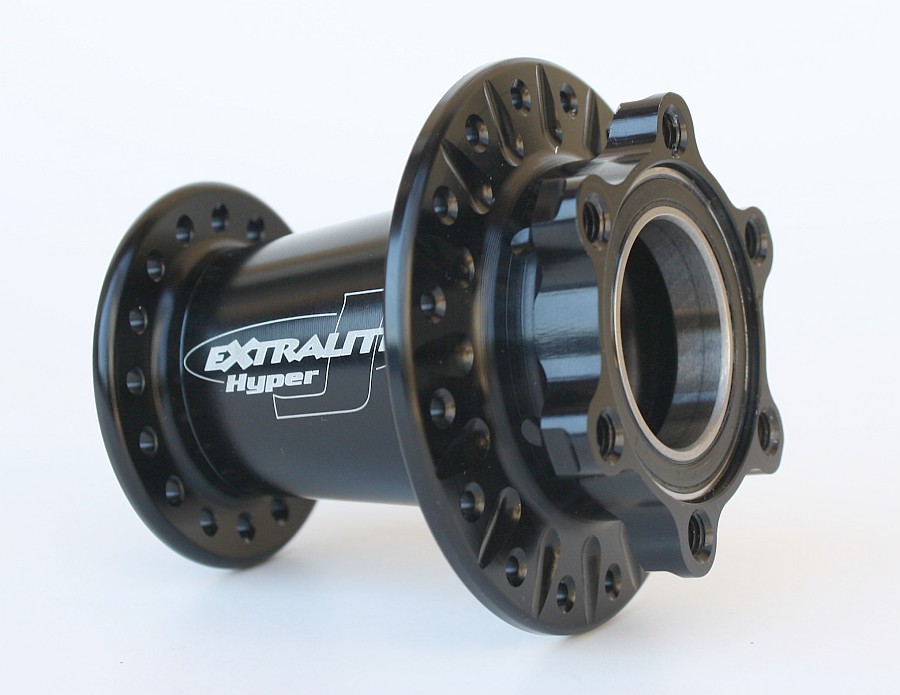

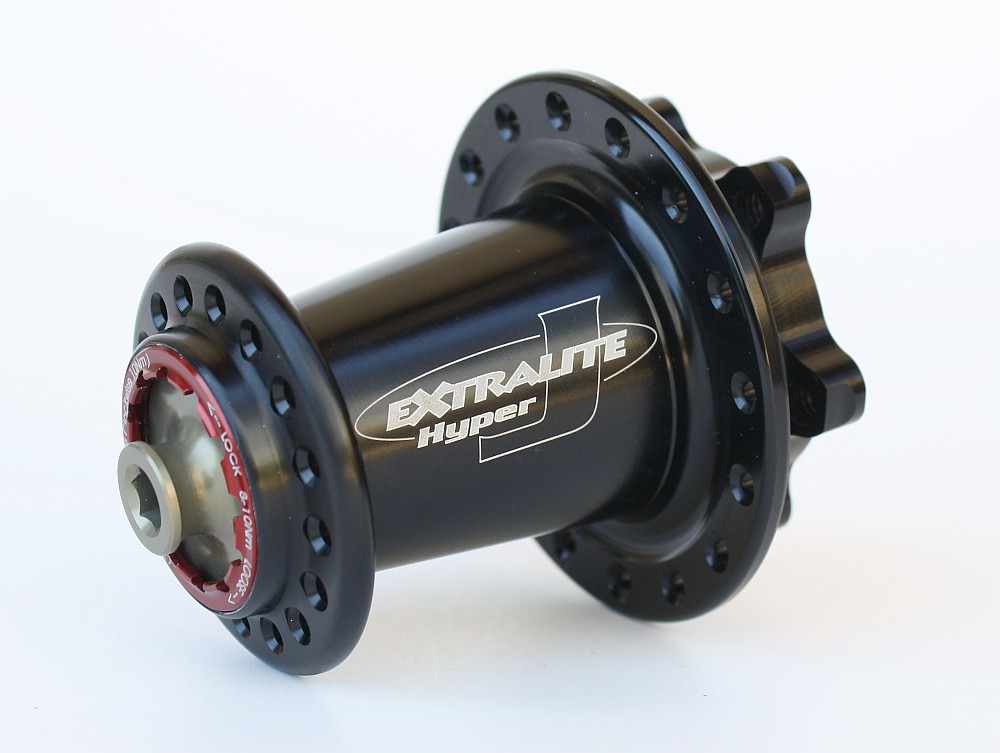

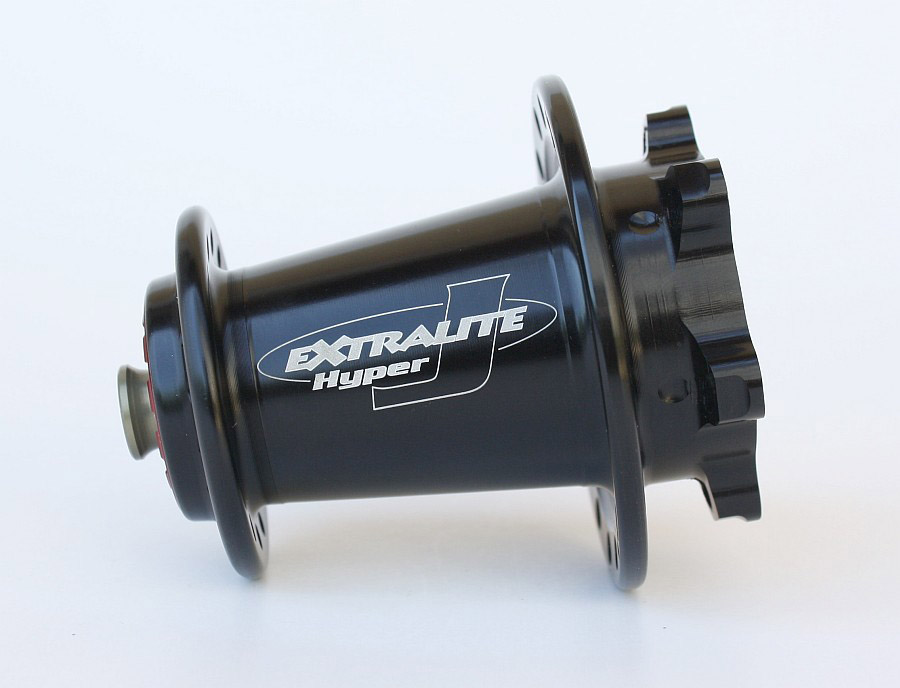

Hyper JL 88g.
All the HyperHubs technology now available for J-bend spokes.
Weight: 88g.
Drillngs: 28 & 32.
Bearings: low-friction, 2RS sealed stainless cartridges.
Retainer/extractor ring: Uni tool compatible.
Retainer/extractor bolt:"hart coat" AL7075.
Compatibility: Lefty 1.0 and 2.0, see below *
Finishing: black anodized body.
Graphics: laser etched.
Optional: HDC-Hybrid-ceramic bearings.
Download
user manual*
HyperJL directly fits Slate and elder MTB forks and featuress a very wide
spoke camber compared to original hubs, nearly as wide as the newer 2.0 models.
HyperJL can also fit Lefty 2.0 , Ocho and SuperMax forks using the original
adaptor "KH112".
HyperLefty 2 is compatible only with Lefty 2.0 , Ocho and SuperMax forks (without
adaptor) however none of the newer 2 hubs can fit the elder fork models in
any way.
Here you find pre-calculated spoke lengths, spoke patterns and wheel building tips.
Dimensions
for wheel building
Right side spoke hole Ø: 2.8mm
Right flange drilling Ø: 37mm
Centre to right flange: 27mm
Centre to left flange: 22.5mm
Disc
side spoke hole Ø: 2.5mm
Disc flange drilling Ø: 55,6mm
Engineered to fit precisely the original Lefty standards.
The oversized disc side hub flange is also part of the secret, it directly reduces the high stress that disc brakes transfer to rims and spokes.
Straight-pull
radial lacing on right side gives you the highest possible lateral stiffness.
Turn your Lefty wheel into the right thing.
100% made in Italy
