HyperCamber 195g.
29er specific, no compromises.
Weight: 195g.
Material: special 7075TXX
Available Drilling: 32H.
Internal sealing: 2xrs seals on each bearing.
Extreme spoke camber: optimized drive train flange.
External sealing: Soft-Touch O-ring on both hub sides.
Frame standards: 135 x 10mm or QR12 (142mm, 142+, X-12).
Micro-Tuner: easy to set external bearing preload system.
Cassette standards: Shimano/Sram 8-9-10s or Sram XD-Drive (XX1).
Freewheel: Hyper engineered front engagement system, 36 positions.
Axle construction: multishaped 17mm grinded to micro tolerances.
Bearings: heavy duty 2x17-30 + 2x17-26 2RS sealed cartridges.
Finishing: "hart coat" sides, red/black anodized body.
Graphics: laser etched.
Available versions:
HyperCamber (standard 135mm, 10mm dropouts).
HyperCamber QR12 (standard 142, 142+, X-12).
HyperCamber XD (Sram XX1 XD-Drive Compatible, standard 135mm, 10mm dropouts).
HyperCamber QR12 XD (Sram XX1 XD-Drive Compatible, standard 142, 142+, X-12).
Optional: "HDC-Hybrid R" hybrid-ceramic bearings.
29"(and 27.5") wheel owners will surely appreciate the benefits of extreme spoke camber.
Drive spokes lace closer to right dropout than on any other hub on the market, see the sketch:
HyperCamber system offers a 10% gain of spoke angle (compared to the already optimized HyperRear).
This translates into healthier and stiffer wheels.
Straight pull spokes increase wheel reactivity under sprinting.
They appreciably reduce lateral flex and increase torque transmission reactivity. All this with a slight weight reduction too!
Sturdy, precise and incredibly light: no shortcuts taken in our quest to reduce weight.
You can count on beefy and properly dimensioned bearings coupled with a highly engineered axle, body and parts.
Wheel rotates on 2 main bearings (6903-2rs) that can handle 250kg each in the worst static condition.
Micro-tuner:
easy to set external bearing preload system integrates external Soft-Touch o-ring
seals.
Precise hub bearing setting ensures low bearing friction and no play at the
rim.
It took more than a year of continuous testing to develop and fine-tune the HyperRear’s fully-alloy front-engagement freewheel mechanism.
This new device is able to manage extremely high torque values, and offers 36 quick engagement positions for a precise feel and minimum frictional resistance
Oversized front engagement freewheel offers a much wider teeth engagement surface upon which to spread the transmission torque.
It is a racing assembly sensibly stronger and lighter than our conventional pawl systems, with the minor trade-off that coasting is a bit noisier.
Wear and tear of freewheel parts is also lower than conventional pawl systems, however wearable parts can be easily replaced.
And it handles over a half-ton of chain pull.

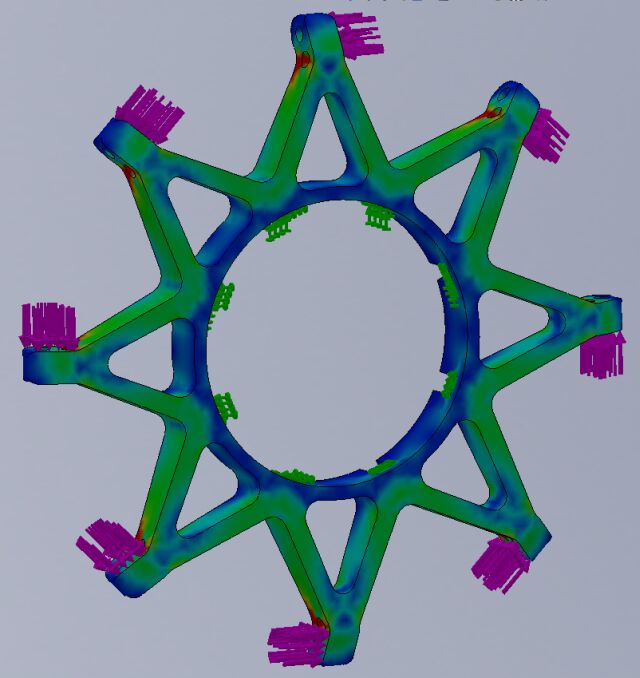

FEA: every single cubic mm receives hours of Finite Element Analysis. HyperRear axles, body and mechanism have been designed to handle the abuses of X-C and marathon racing and more.
Here you will find pre-calculated spoke lenghts, spoke patterns and wheel building tips.
100% made in Italy
