HyperRear2 161g. (28h-142-XD)

Absolute performance.

Sturdy, precise and incredibly light: no shortcuts taken to reduce weight.


Weight: 161g.(28h-142-XD)

Material: special 7075TXX

Available Drillings: 32H - 28H - 24H

Frame standards: 142mm (12mm thru axle) or 135x10mm

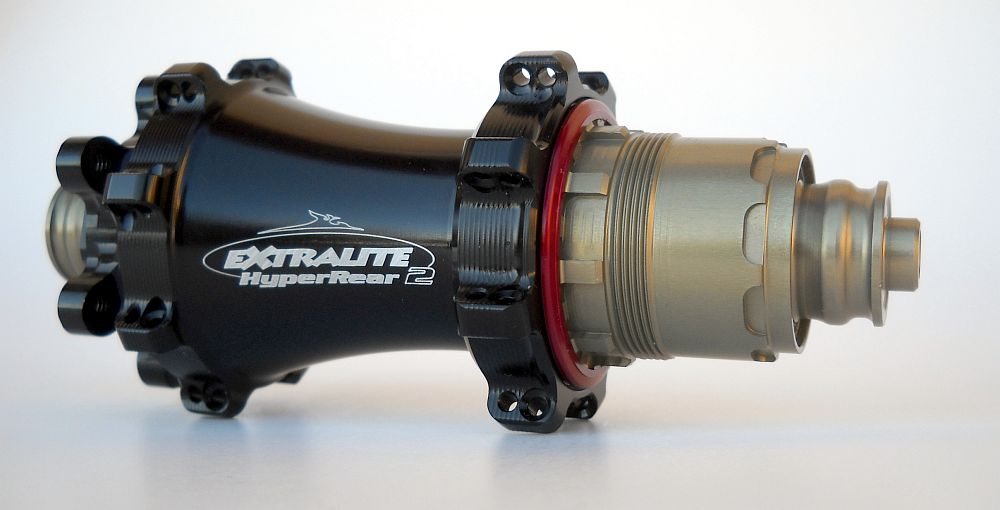

Cassette standards: Sram XD-Drive (11-12s), Shimano MTB 10/11s, Shima. 12s

Micro-Tuner: easy to set external bearing preload system

Internal sealing: 2xRS soft-touch NBR seals on each bearing

External sealing: polyurethane Lip seal / Soft-Touch o-ring

Freewheel: hyper engineered front engagement system, 36-60 points of engagement

Axle construction: multi-shaped, 17mm, rectified to micro tolerances

Bearings: 2x17-30 heavy duty + 2x17-26 2RS sealed stainless cartridges

Finishing: "hart coat" sides, black anodized body

Graphics: laser etched

Optional: HDC-Hybrid-ceramic bearings

Download user manual

A new and specifically designed polyurethane lip seal enhances the protection of freewheel mechanism.

The new "twin-Life" hub-shell features a second additional row of splines for the floating ring.
The second fitting position allows to rebuild the hub back to brand new conditions in case it get badly worn out by a neglected maintenance.

Wheel rotates on 2 heavy duty bearings (6903-2rs) that can handle 250kg each in the worst static condition.

Now equipped with corrosion resistant stainless bearings.

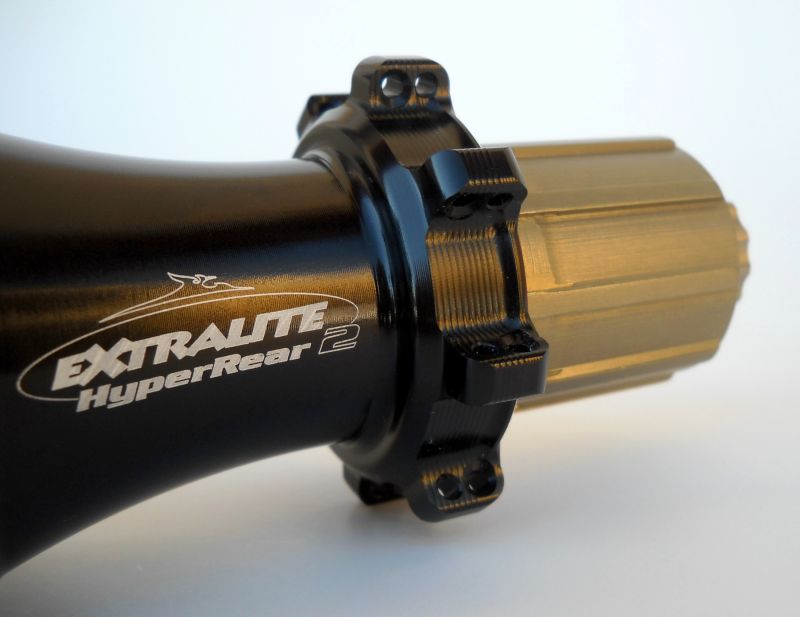

Wheel owners (especially 29ers) will appreciate the extreme spoke camber.
The drive spokes lace closer to right dropout than on any other hub on the market.
This translates into healthier and more rigid wheels.

Straight pull spokes increase wheel stiffness under sprinting.
They appreciably reduce lateral flex and increase torque transmission reactivity.
All this with a slight weight reduction too!

It took more than a year of continuous testing to develop and fine tune the HyperRear's fully-alloy front-engagement freewheel mechanism.

This new device is able to manage extremely high torque values, offers 36 quick engagement positions for a precise feel and a minimal friction resistance.

Oversized front engagement freewheel offers a much wider teeth engagement surface upon which to spread the transmission torque.

It is a true racing assembly which is sensibly stronger and lighter than conventional pawl systems.
minor trade-off its coasting sounds a bit more loud.

Wear and tear of freewheel parts is also higher than conventional pawl systems, however the wearable parts can be easily replaced.

You can count on beefy and properly dimensioned bearings coupled with highly engineered axle, body and parts.
And it handles over a half-ton of chain pull.

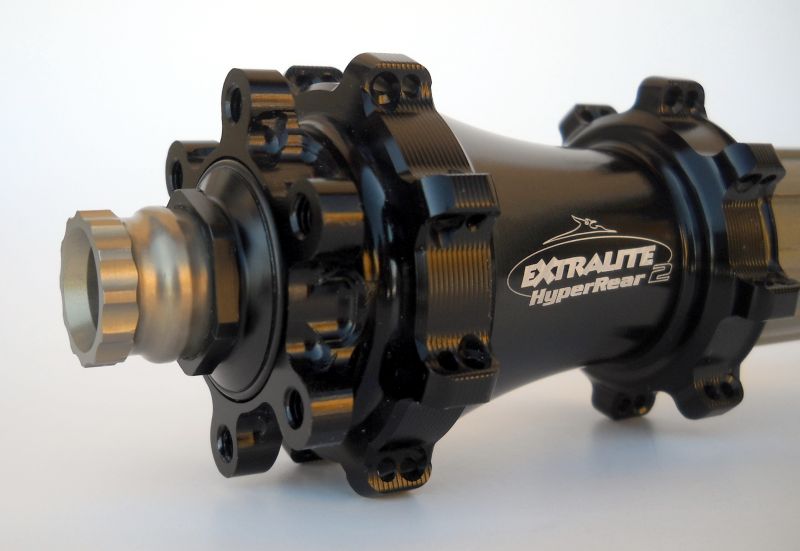

Micro-tuner: easy to set external bearing preload system integrates external Soft-Touch o-ring seals.
Precise hub bearing setting ensures low bearing friction, durability and no play at the rim.

Here you will find pre-calculated spoke lengths, spoke patterns and wheel building tips.

HyperHubs lacing instructions

Dimensions for wheel building
Spoke hole : 2.5mm
Disc flange drilling : 53.6mm
Centre to left flange: 36.5mm
Centre to right flange: 22.5mm
Right flange drilling : 50mm

Hubs are not supplied with skewers/QR.


HyperHubs FAQ Page

100% made in Italy
