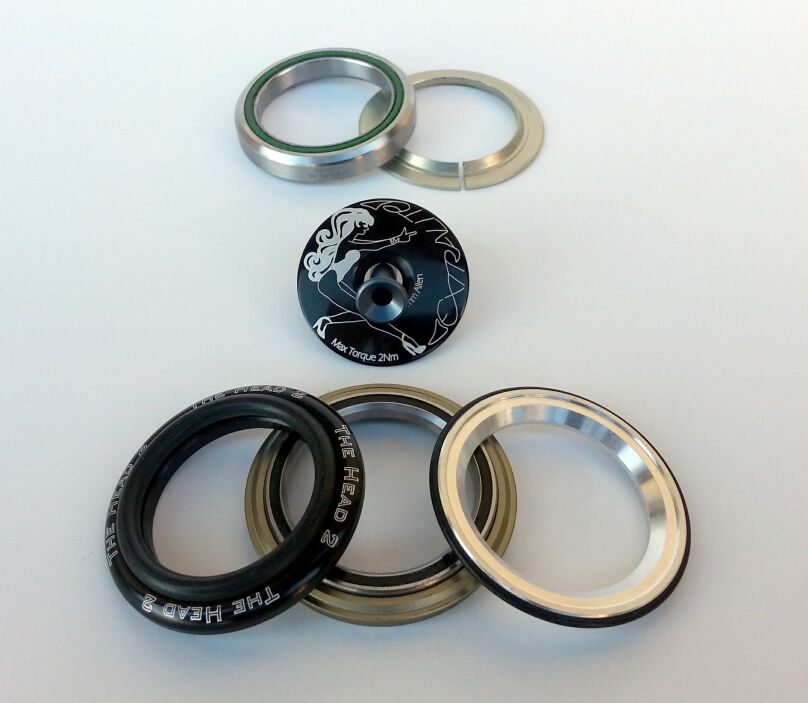

IntegrHead 2 41gr.(HyperCap & bolt included)

Do not forget quality even if out of sight!

Slimmer, lighter and trickier: a real concentrate
of our Extralite high-quality engineering.



Sealing: 4 RS + 1 O-Ring.

Weight: 41gr.(HyperCap & bolt included).

Upper Bearing: Radial micro cartridge.

Upper Stack: 8mm (from head tube to stem).

Lower Stack: just cleareance.

Lower Bearing: Stainless bidirectional cartridge.

Standard: 42mm frame head tube*.

Finish: black/bronze anodized.

Graphics: laser etched.

(*) Frame standard 42mm (tolerance 41.95 to 42.00mm); measure refers to frame steer tube internal diameter measured at upper headset fitting level.
Lower bearing fitting: 41.5 to 42mm diameter with standard internal 45° chamfer.

Besides it's lightness it offers some exciting extras too!

· Precise and smooth steering feel.

· Better sealing: 4 RS cartridge bearing seals,
1 external o-ring.

· Better labyrinth configuration
that significantly reduce internal moisture.



Warning: UPPER RADIAL MICRO BEARING CANNOT HANDLE UPSIDE-DOWN LOADS/SHOCKS.

Suitable for x-c single crown or road forks only.

Available in 1 1/8' standard size only.



100% made in Italy
