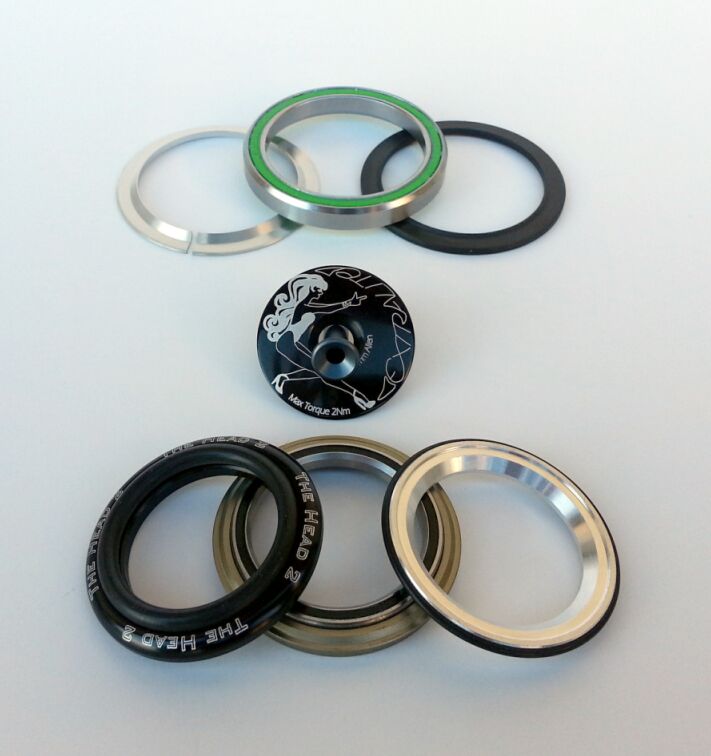

TaperHead 1 46g.(HyperCap & bolt included)

The weightweenie chioice.



Sealing: 4 RS + 2 O-Rings.

SHIS: ZS42/28.6 | IS52/40

Lower Stack: just cleareance.

Weight: 46g.(HyperCap & bolt included).

Upper Bearing: Radial micro cartridge.

Upper Stack: 8mm (from head tube to stem).

Lower Bearing: Stainless bidirectional cartridge.

Steer tube diameter: 1'1/8 - 1’1/2 (26,8mm-40mm).

Head tube bore diam: 42-52mm frame head tube*.

Finish: black/bronze anodized.

Graphics: laser etched.

(*) Frame standard 42mm (tolerance 41.95 to 42.00mm); measure refers to frame steer tube internal diameter measured at headset fitting level.

Warning: UPPER RADIAL MICRO BEARING CANNOT HANDLE UPSIDE-DOWN LOADS/SHOCKS.

Suitable for x-c single crown or road forks only.



100% made in Italy
