Super adaptive, yet incredibly light and precise.
Weight: 69g
Material: special 7075TXX
Available Drillings: 24, 28h
Spokes: up to Ø2.6mm, steel, Berd, carbon
Bearings: 2x6803 2RS sealed stainless cartridges
Micro-Tuner: super accurate external bearing preload system
Spoke holes: Rounded and 3D Drilled for perfect spoke alignment
Fork standard: 100mm width, Thru-axle 12mm or 15mm, quick-release
Axle construction: 17mm or 15mm, multi-shaped and individually lapped to micro tolerances
Sealing: external Soft-Touch O-rings, 2+2 RS bearing seals
Finishing: black anodized body, "hart coat" axle-ends
Graphics: laser etched
Optional: HyC HyperCeramic bearings
Unique feature: HyperSmart3+ F offers the same axle stiffnes both if TA12 or QR15 featuring on both versions a Ø17mm axle and beef 6803-2RS bearings.
|
Bearing
Options |
Lacing
Instructions
Pre-calculated spoke lengths, spoke patterns and wheel building tips. |
|
|
|
 Good mileage Low rolling resistance Medium resistance in humid environment Best choice for best racing performance |
|
 Low rolling resistance Highest mileage Fully openable and rebuildable Highly resistant to water, moisture and salt Best choice for maximum racing performance and durability |
|
Equipped with 17-26mm corrosion resistant stainless bearings on an oversized axle that is multi-shaped and individually lapped to micro tolerances
Micro-tuner ensures a very precise bearing setting: minimum bearing friction with highest bearing durability and no play at the rim
Additional
external
Soft-Touch
O-ring
seals keep dus and moisture away from the 2RS bearing seals promoting bearing
longevity
Wide and beefy disc flange reduces spoke stress under braking
Straight pull spokes increase wheel stiffness, reduce lateral flex and increase reactivity under torque transmission
Fully convertible in all standards: Thru axle 12 & 15mm, Quick Release
All this offers a sensible weight reduction and is well compatible with Berd spokes without tangential washers

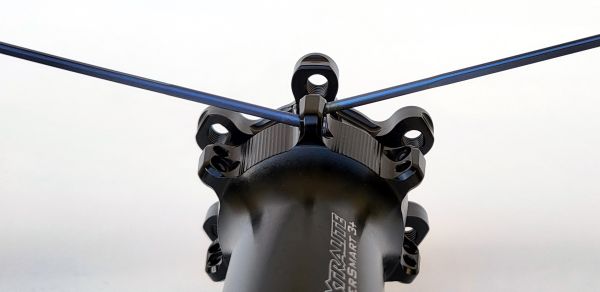

Angled 3D Drilled spokes ensure a perfect head alignment
HyperSmart set reach the impressive weight of 213g
100% made in Italy
