QRC-3 from 329g.
Hollow profile, highly stiff, an impressive CNC artwork

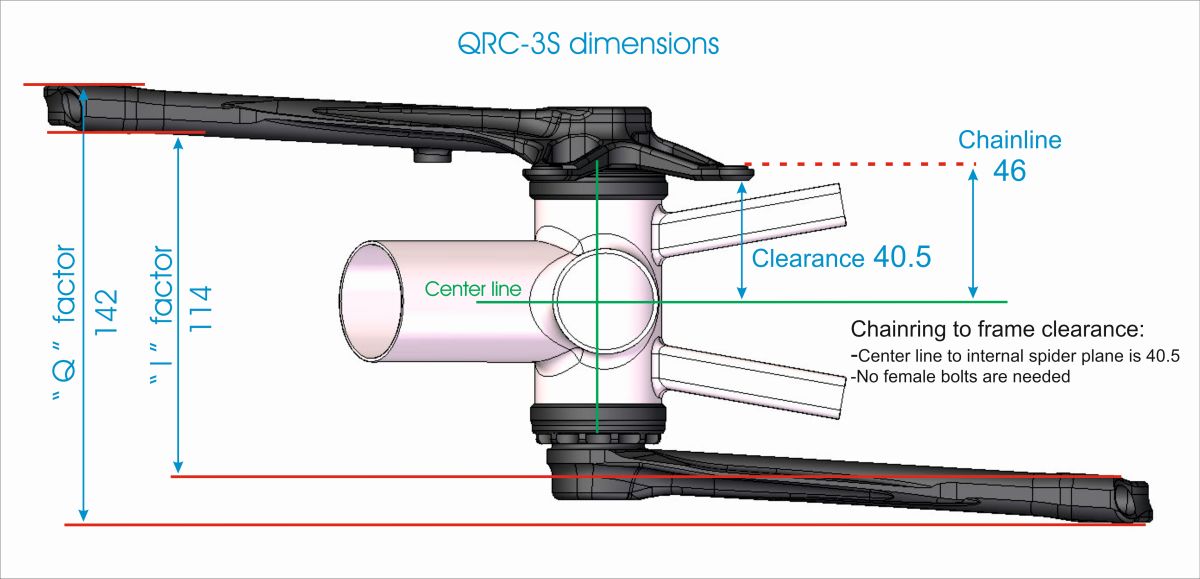

Q-factor: 142mm
Weight: from 329g, see table
Bcd: 110mm standard compact
Bearings: 30-42mm low friction seals
Spindle: integrated 30mm axle
Graphics: laser etched / CNC
Finishing: black anodized
Size: 170mm
Bearing
options: ABI-Enduro,
HyperCeramic or Enduro
XD-15 (both stainless ceramic)

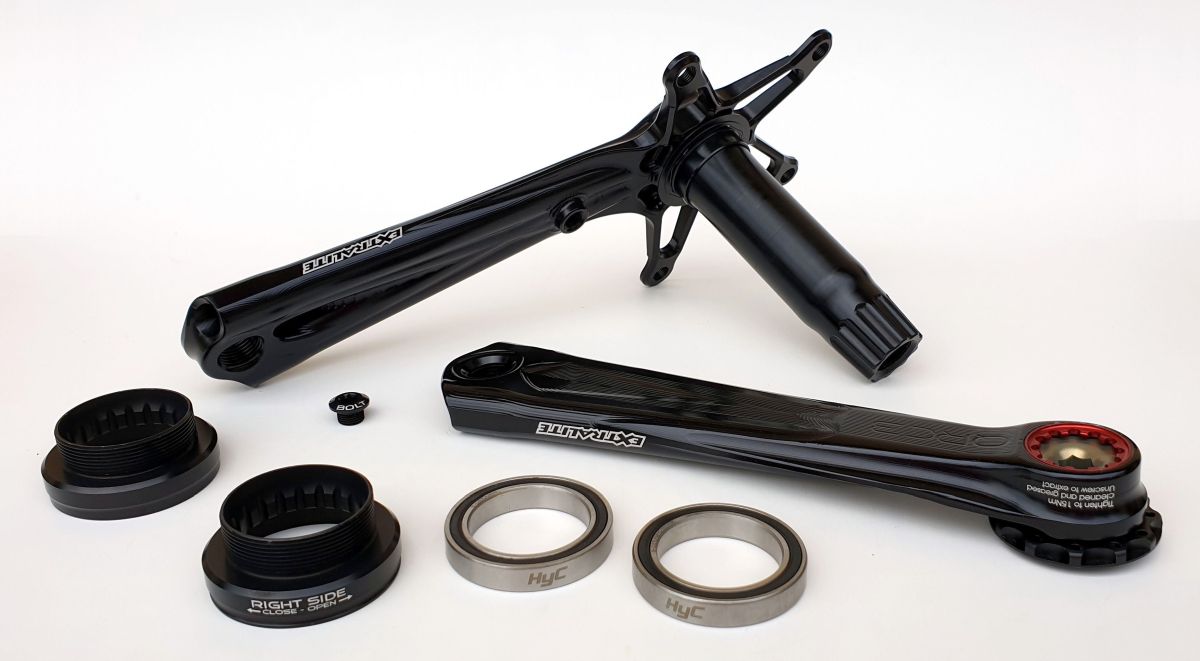

QRC-3
cranks come complete with the BB assembly, no other
parts are required to
install them on your frame
BB
are equipped only with high-quality bearings,
choose
according to your intended use and to the
environment of your area
QRC-2
brought the SSP (Stress Split Profile) concept to the
extreme
QRC-3 are
a whole step forward: 17% lighter and 15%stiffer
|
Model
|
Drivetrain
system
|
Destination
|
Chainline
|
Weight*
|
Manulal
|
| QRC-3D | DIRECT Mount chainring |
Road
and Gravel
|
-
|
329g
|
|
| QRC-3S | SINGLE Chainring setups |
Road,
Gravel, Brompton
|
46mm
|
348g
|
 |
| QRC-3 | DOUBLE Chainring setups |
Road
and Gravel
|
44mm
|
359g
|
* Weight
includes crank levers, spider, axle, axle bolt, extractor ring, "click-dial"
bearing preload
and both bushings for the bearing support
* BB
is included in the price and weight is specified in the table
below
Hours of state-of-art, point-to-point 5 Axis 3D milling technology are employed on each unit
Each crankset receives the same sculpturing process and care once limited only to works prototypes

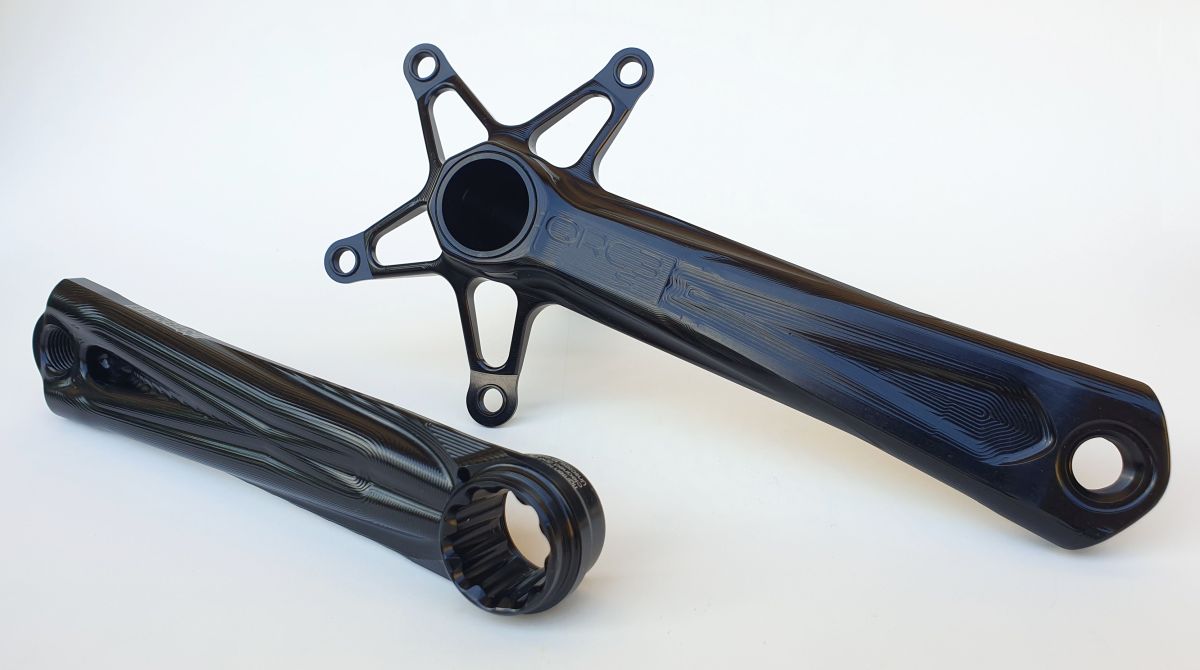

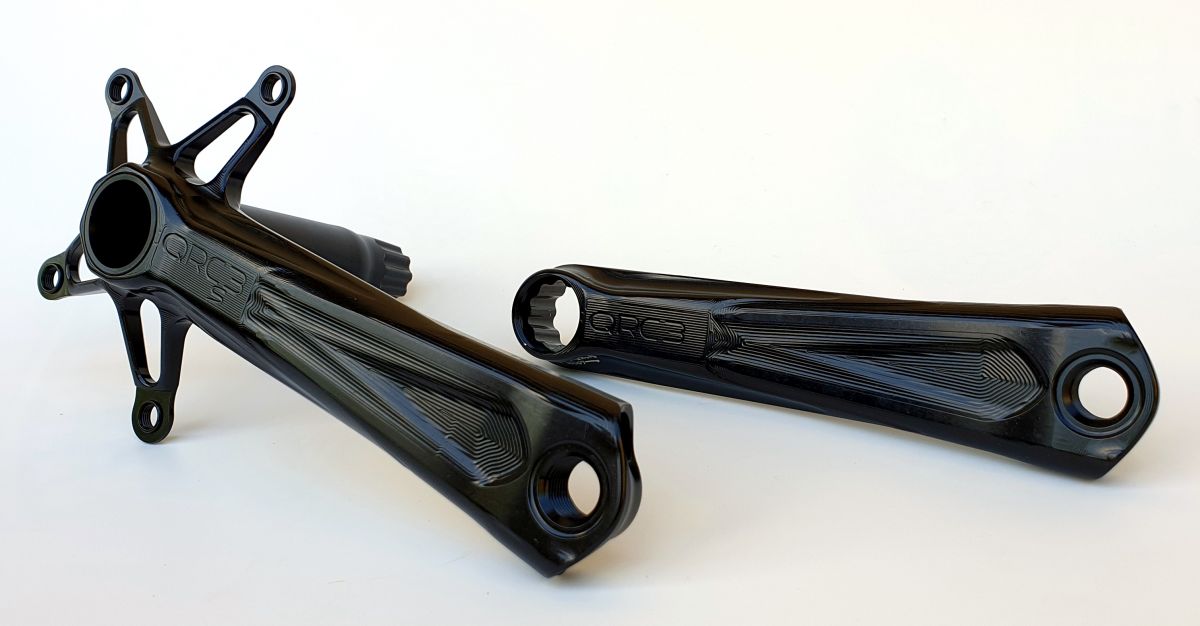

Both crank-arms are "sculptured" with a sophisticate 3D cnc process for a higher freedom in multi-dimensional shaping
CNC artwork combines lightness with elegance
2 years of accurate FEA simulations and dozens of different prototipes destroyed to achieve an incredible level of safety
Special custom tools have been developed to achieve a super deep and efficient hollow structure
Self extracting left crank: no special tools required
Stylish and precise "click-dial" bearing preload system
QRC-3 spiders fit standard 5 holes BCD 110mm chainrings and bolts, double and single chainring setups

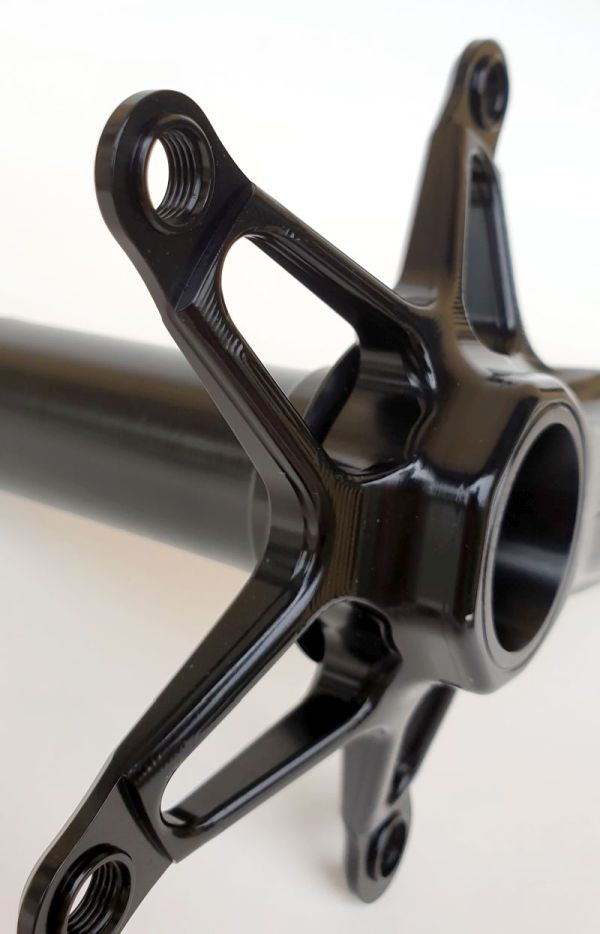

QRC-3s spider arms feature built-it female chainring-bolts to simplify and enlighten the final assembly
We recommend Extralite chainrings for perfect cosmetic match and further weight reduction

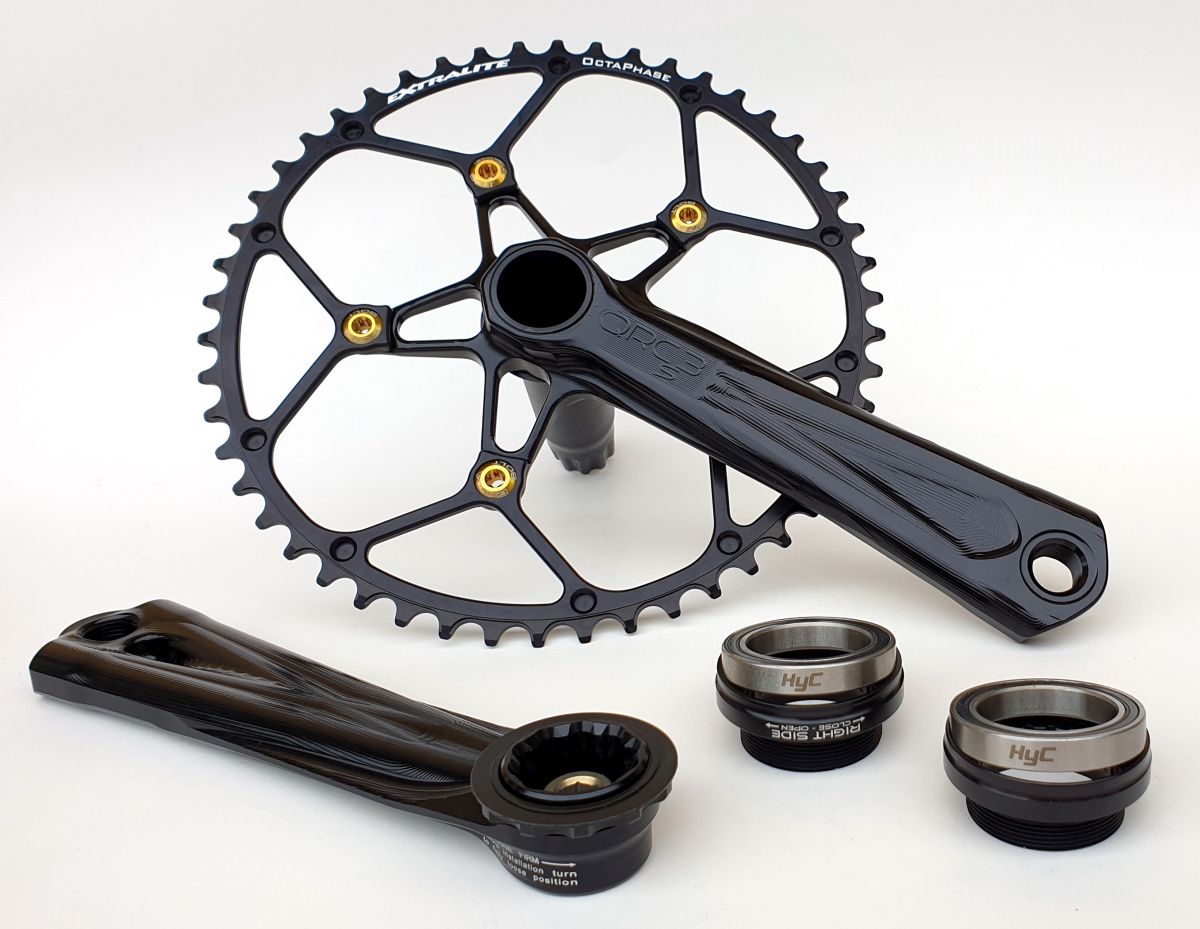

Complete you QRC-3S with Extralite parts: OctaPhase and 1 set of ExtraBolt 1.2S in your favourite anodized finish

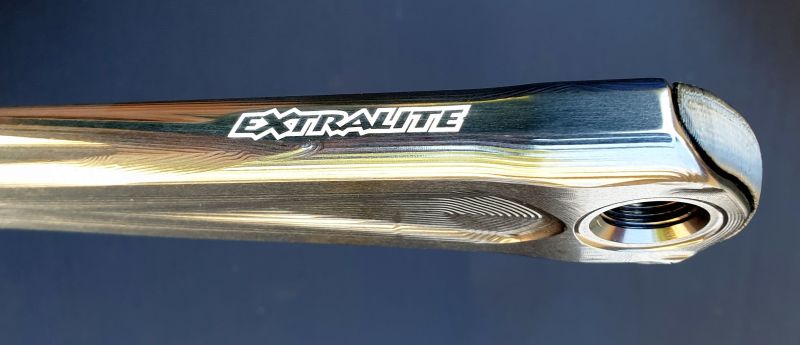

QRC3 can be equipped with Aeronose, 3D printed nylon cover, useful to increase aerodynamics and protect from dirt intrusion

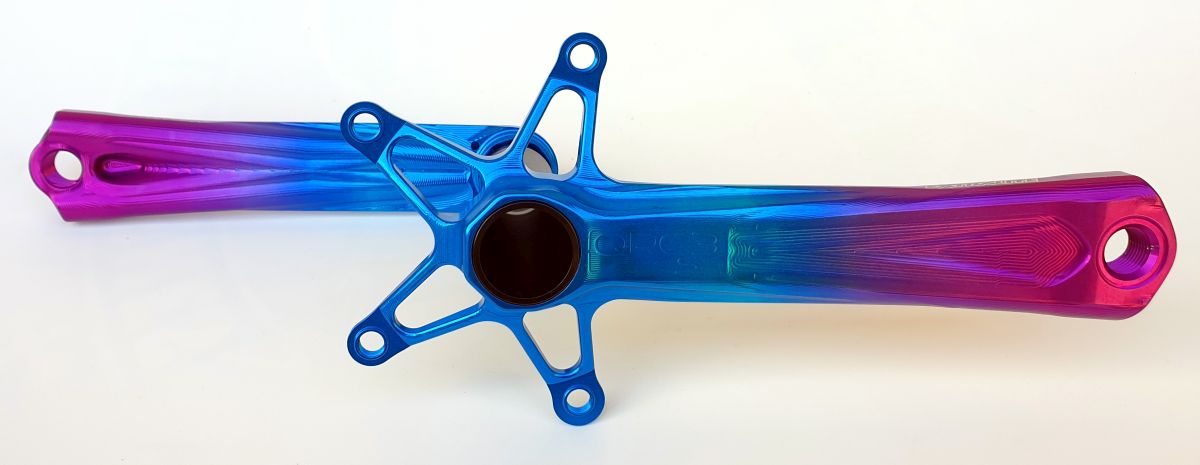

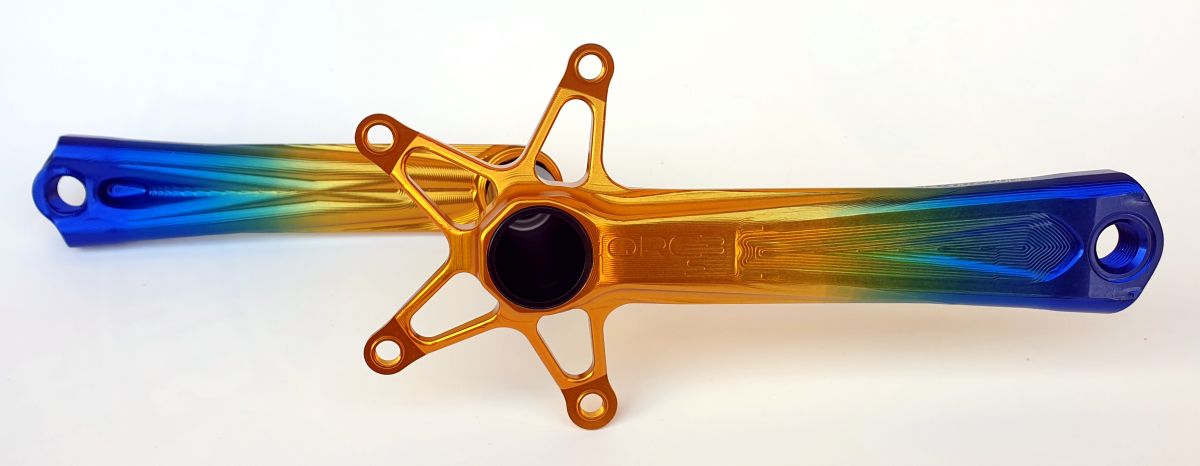

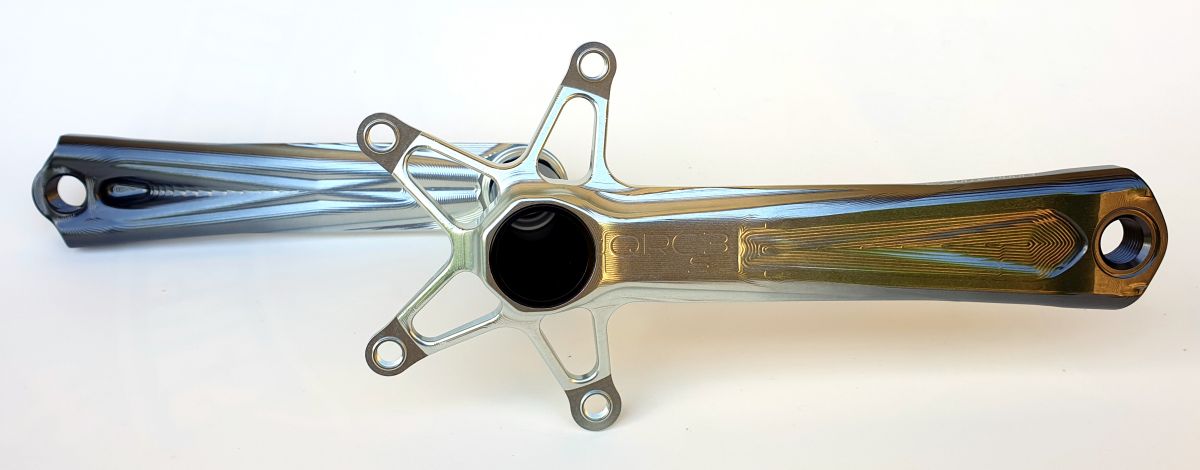

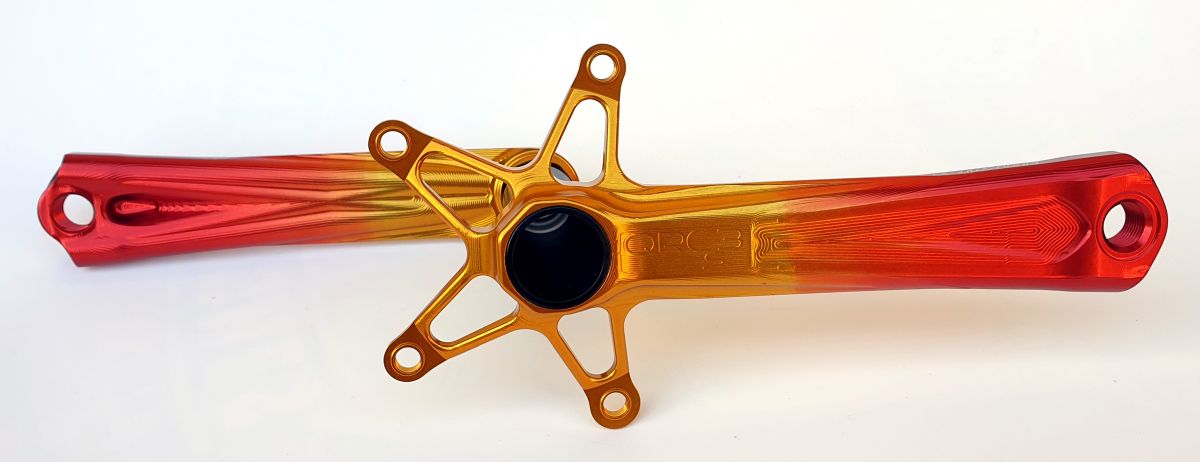

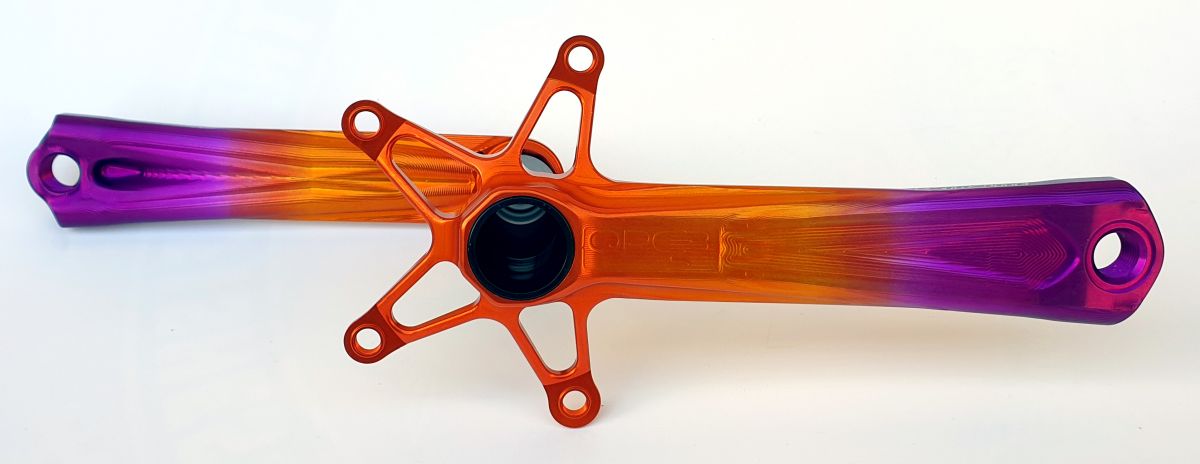

Limited Edition Colors
QRC-3 are supplied with BB bearings and cups that fit every common frame-standard
|
BB-Model
|
Compatibility
|
Weight
|
Specs
|
|
BSA
68mm
|
|
+66g
|
SM-BB6700 thread 1.37 X 24 T.P.I. 68mm wide |
|
BB30-68
|
|
+65g
|
Bore 42mm width 68mm |
|
BB91-42
|
|
+44g
|
Bore
42mm
Width 84.5mm Internal bearing shoulders 68.5mm |
|
BB91-41B
(special 41mm bearing included) |
 |
+42g
|
Bore
41mm
Width 86.5mm max |
|
PF30-68
|
 |
+66g
|
Bore
46mm
Width 68mm |
|
BB386
Evo
|
|
+62g
|
Bore
46mm
Width 86.5mm max |
|
BB
Right 42
|
 |
+44g
|
Bore
42mm
Width 79mm Asymmetrical |
|
BB
Right 46
|
 |
+62g
|
Bore 46mm Width
79mm |
|
T
47
|
 |
+73g
|
thread M47x1 68mm wide |
100% made in Italy
