CyberRear SL wheel-building
Here you find all the necessary instructions to realize your dream wheels with pre-calculated spoke lengths.
Follow instruction step by step:
1)Measure your "spoke-end diameter"
2)Find your rear spoke length (left side) on table A
3)Find your rear spoke length and lacing pattern (drive side) on table B
(All measures are expressed in mm)
4)Lace the wheel respecting correct lacing pattern (see below)
Maximum spoke tension:- Refer to manual
Warning: spoke lacing and tensioning require skills and experience,refer to an expert professional wheel builder for these operations.
1)"spoke-end diameter"
Rim manufacturers always offer ERD figures however we warmly recommend to precisely measure the rim+nipple combination.
Basically
a correct spoke calculation requires exact "spoke-end diameter" and rim drilling.
Spoke-end
diameter depends on your rim internal diameter and nipple type.
How to measure "spoke-end diameter"
2)CyberRear SL
Left side - Radial lacing - Elbow spokes
Spoke-end
Diameter |
Spoke
Length
|
515 |
244
|
520 |
246
|
525 |
249
|
530 |
251
|
535 |
253
|
540 |
256
|
545 |
258
|
550 |
261
|
555 |
263
|
560 |
266
|
565 |
268
|
570 |
271
|
575 |
273
|
580 |
276
|
585 |
278
|
590 |
281
|
595 |
283
|
600 |
286
|
605 |
288
|
610 |
291 |
Table A
Note: We
list "spoke-end diameters" every 5mm step. If your "spoke-end
diameter" measure is in between 2 steps adjust your spoke length consequently.
Example 1: your "spoke-end diameter" is 563mm use 266mm spoke.
Example 2: your "spoke-end diameter" is 567mm use 268mm spoke.
Example 3: your "spoke-end diameter" is 569mm use 270mm spoke.
Lacing: radial on interal flange side, use only D/B spokes (central section equivalent to Ø 1.5mm).
3)CyberRear SL
Drive side - Elbow spokes
Spoke-end
Diameter
|
Spoke
Length
20H |
Spoke
Length
24H |
Spoke
Length
28H |
Spoke
Length
32H |
515
|
251
|
246
|
253
|
249
|
520
|
253-254
|
248
|
256
|
252
|
525
|
256
|
251
|
258
|
254
|
530
|
258-259
|
253
|
261
|
257
|
535
|
261
|
256
|
263
|
259
|
540
|
263-264
|
258
|
266
|
262
|
545
|
266
|
261
|
268
|
264
|
550 |
268-269
|
263-264
|
271
|
267
|
555
|
271
|
266
|
273
|
269
|
560
|
273-274
|
268-269
|
276
|
272
|
565
|
276
|
271
|
279
|
274
|
570
|
278-279
|
273
|
281
|
277
|
575
|
281
|
276
|
283
|
279
|
580
|
283-284
|
278-279
|
286
|
282
|
585
|
286
|
281
|
288
|
284-285
|
590
|
288-289
|
283-284
|
291
|
287
|
595
|
291
|
286
|
293
|
289-290
|
600
|
293-294
|
288-289
|
296
|
292
|
605
|
296
|
291
|
298
|
294-295
|
610 |
298-299 |
293-294 |
301 |
297 |
Table B
Note:
We list "spoke-end diameters" every 5mm step. If your "spoke-end
diameter" measure is in between 2 steps adjust your spoke length consequently.

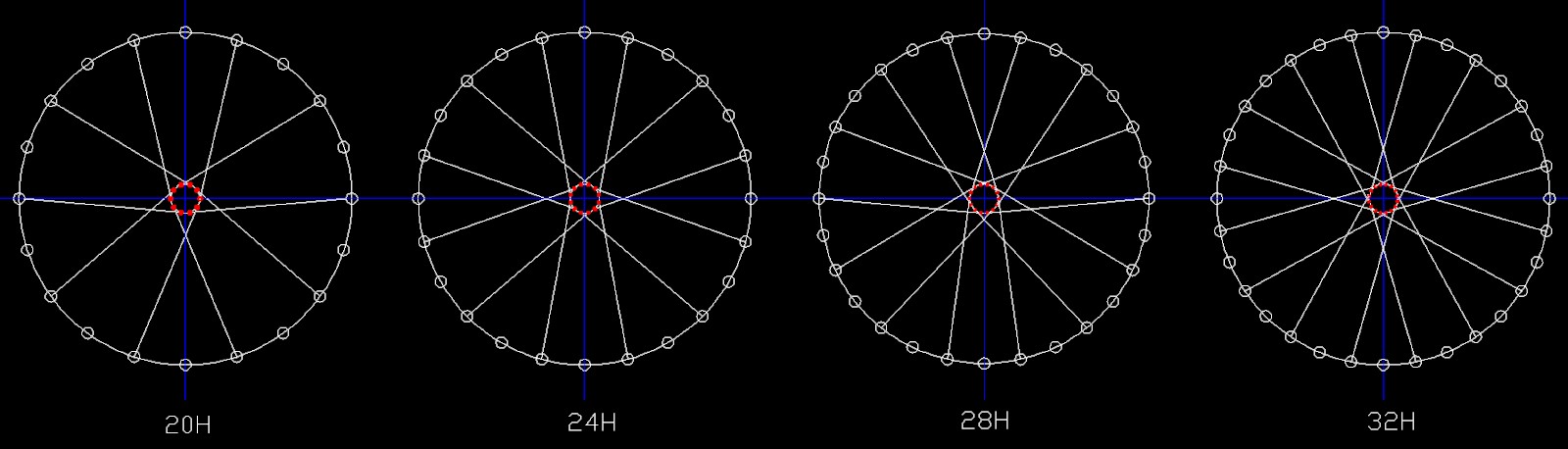

Lacing: correct lacing patterns with elbow spokes must be as shown below.

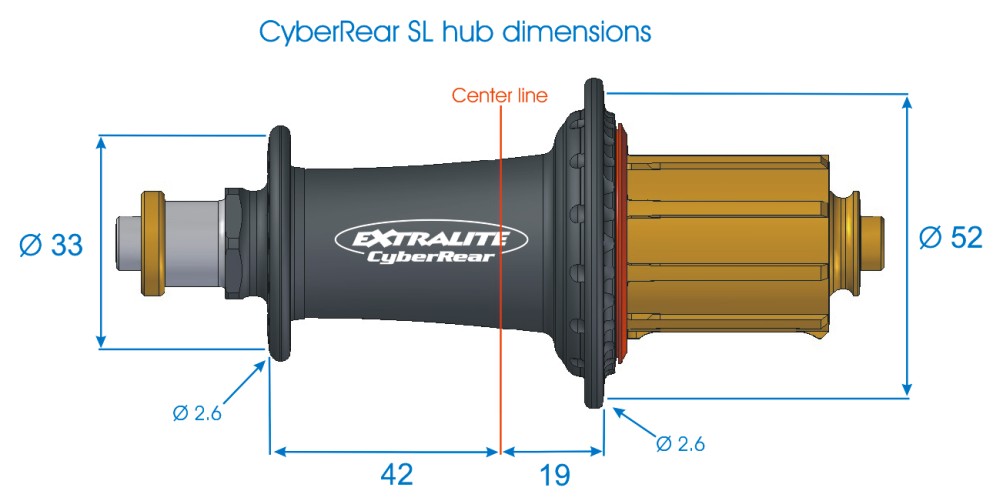

Dimensions for wheel building
Spoke
hole Ø: 2.6mm
Left
flange drilling Ø: 34mm
Center to
left flange: 39mm
Center
to right flange: 18mm
Right
flange drilling Ø: 52mm
100% made in Italy
