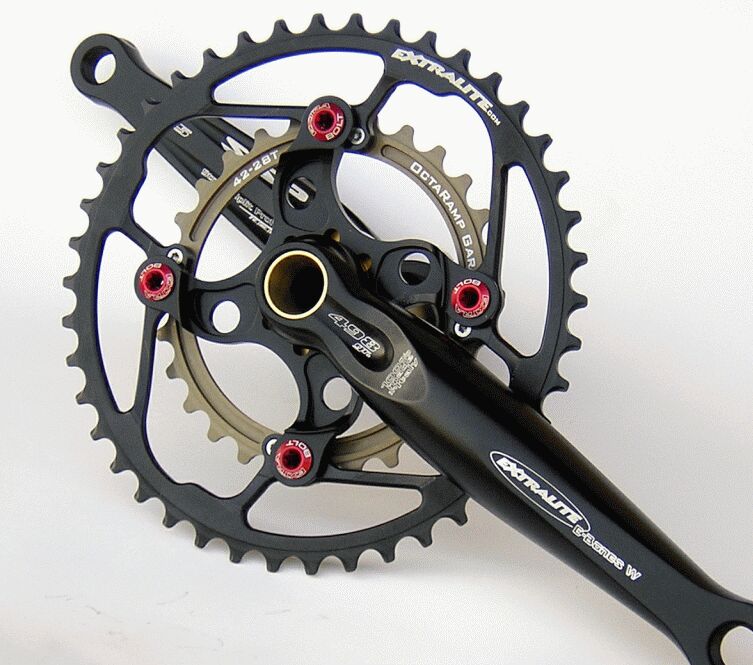

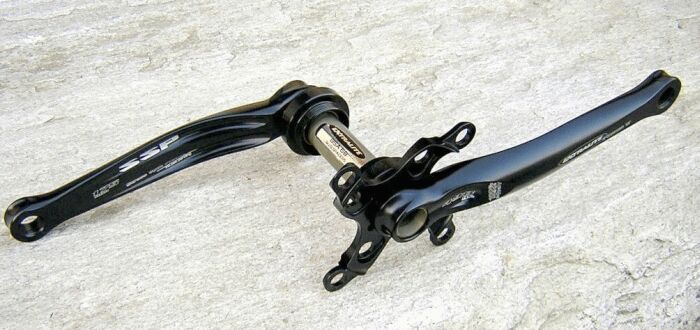

E-Bones W from479g.



New generation E-Bones: a huge increase in performance and bearing durability.

Developed with our hyper-accurate dimensioning, they include our proprietary design:

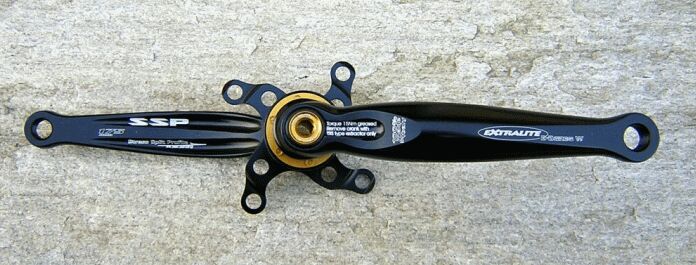

Stress Split Profile

That means hi-torsional rigidity with unmatched weight.

How does it work?

Torsional and bending stresses are split into separate crank areas enhancing rigidity/mass ratio in every pedalling phase.



Weight: 498*g/set

Sizes: 175 or 172.5mm.

Bearings: external 30 42.

Spider: standard 104mm / 64mm.

Finishing: black anodized.

Q-factor: 160mm with BSA 68 BB shell.

Spindle: integrated 22mm axle.

Graphics: laser etched.

Option: Hybrid ceramic bearings.



* Cranks weight with complete BB assembly for BSA68 and BB30 model(see talbe below).



E-Bones W F.A.Q & Tips



E-Bones W are avaiable for different BB shells.
Check this table to identify your BB model (precisely measure it).

Model
Q factor
Individual Weights
Chainline
Compatibility
E-Bones W
Bsa68
160 mm
498g.
48.7 mm

BSA68mm

E-Bones W
Bsa68/73
165 mm
502g.
51.2 mm

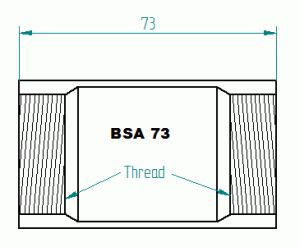

BSA 73mm

or BSA68mm,
BSA68mm + type E derailleur,


(not compatible with
BSA73mm + type E derailleur).

E-Bones W
BB30-68
160 mm
498g.
48.7 mm
BB30 68mm wide

E-Bones W
BB30-73
165 mm
502g.
51.2 mm

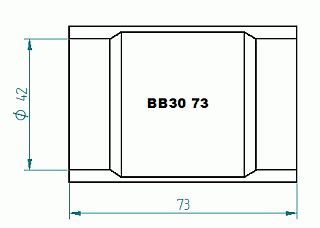

BB30 73mm wide

E-Bones W
BB91-42
160 mm
482g.
48.7 mm

BB91-42

E-Bones W
Press fit 41
165 mm
483g.
51.2 mm

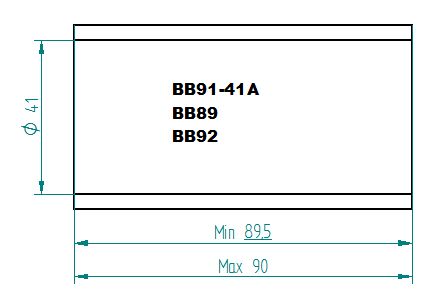

BB91-41A , BB89, some BB92

BB shell with a 41mm bore and a width of 91 or 92 have to be reamed down to 89.5min - 90mm max

Not Compatible
-
-
-
BB91-41B or BB86
E-Bones W
PF30-68
160 mm
498g.
48.7 mm
PF30-68
E-Bones W
PF30-73
165 mm
502g.
51.2 mm

PF30-73

Please specify BB details at your ordering.



Hyper accurate Finite Element structure analysis minimizes stress concentrations and improves fatigue resistance.



More than an hour of state-of-art 3D milling technology.

These 3D sculptures can handle your sprinting efforts like no other metal cranks,

SSP technology works for you!

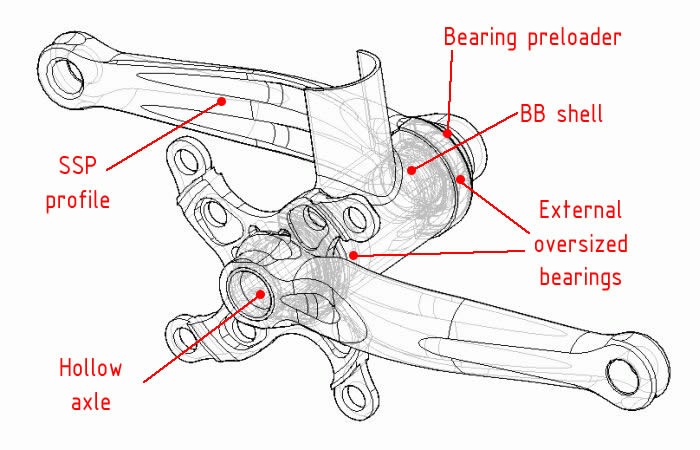

New integrated design employes massive 30-42mm bearings (bigger than Shimano XTR). The external positioning enhances axle rigidity.

New bearings weight more than light-Isis ones but feature 50% bigger balls. 3.5mm balls can manage loads better and with much less sensitivity to lateral loads, water and dirt.

E-Bones: the most sophisticated crankset ever made.

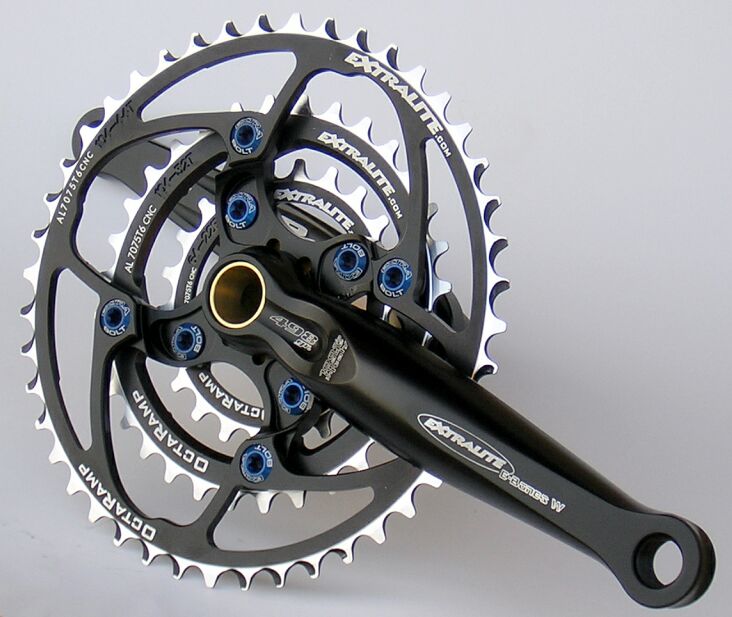

E-Bones will performance at their best with OctaRamp





E-Bones excede UNI safety standard fatigue tests.



100% made in Italy
