F-1 4.o x-link 1980gr.(4.4Lb.)

This is the F1!


V e r s i o n - 4 . o


StablePlate (190*gr.)

F-1 comes equipped with "stable platform" shock pecisely tuned on rider requirements.

Tech Specifications

* Pressurized, separate air/oil reservoir.

* Speed sensible damping, fully tunable(internally).

* Excellent dimensional ratio: lenght 152mm, stroke 44mm.

* 3 levels of threshold avaiable (soft 15kgf, medium 20kgf, hard 25Kgf).

* Damper weight: 140gr. (oil included); Chrome Silicon springs (from 95gr).

* Exclusive hi-tech graphite composite double lips seals, will last for years.

* Hard anodized 7075 T6 shock shaft, featuring ultra smooth (sub .002) surface treatment.

* Fully rebuildable it offers a very wide tuning range to match idividual damping preference.


Coil-over shocks offer perfectly linear response.

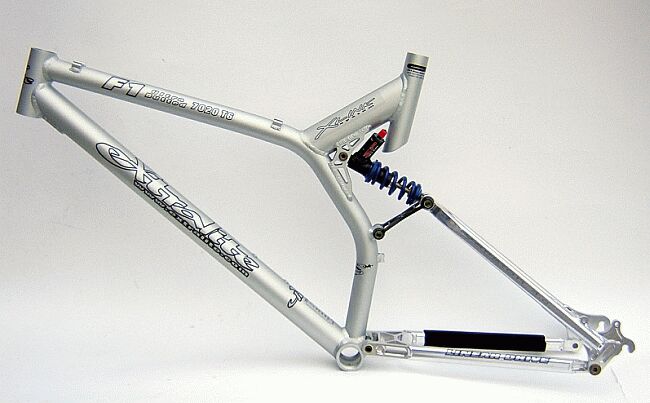

"X-link" 4bar geometry.

Now equipped with SP new shock!

With a hardtail's agility, quickness and weight the F-1 gives you the best weight/performance ratio ever dreamed for x-c racing.


The "X-link" system offers a true anti-bob response, suitable for the riders who want a full suspended racer that feels like a rigid one while sprinting on the pedals, but with more climbing, braking, cornering and descending control.

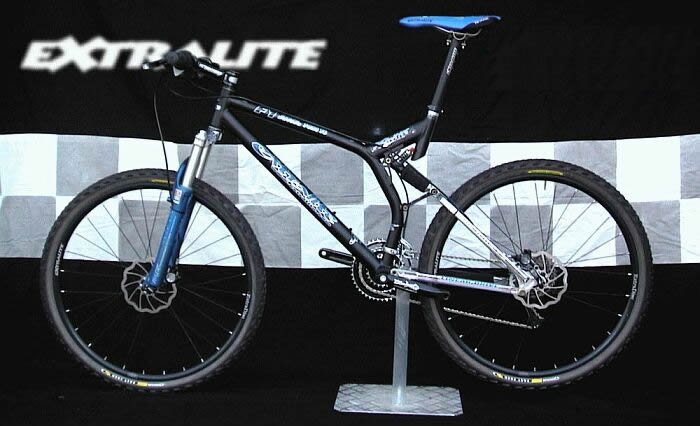

F1 Race Disc 9430gr.

F1 Race Disc 9430gr.

F1 Race Custom 8570gr.


F1 Custom 2x9 8940gr.


100% made in Italy
